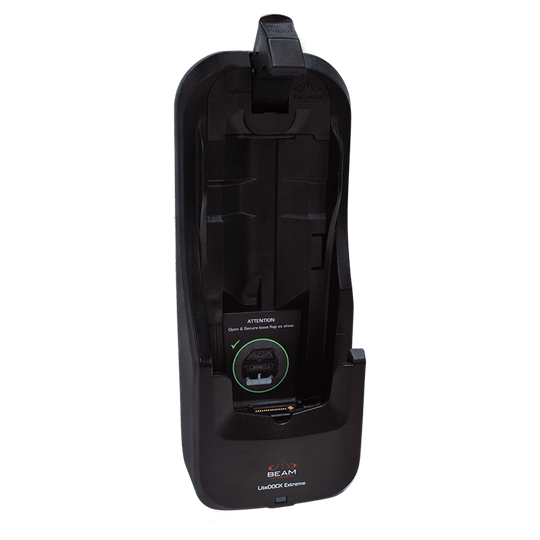

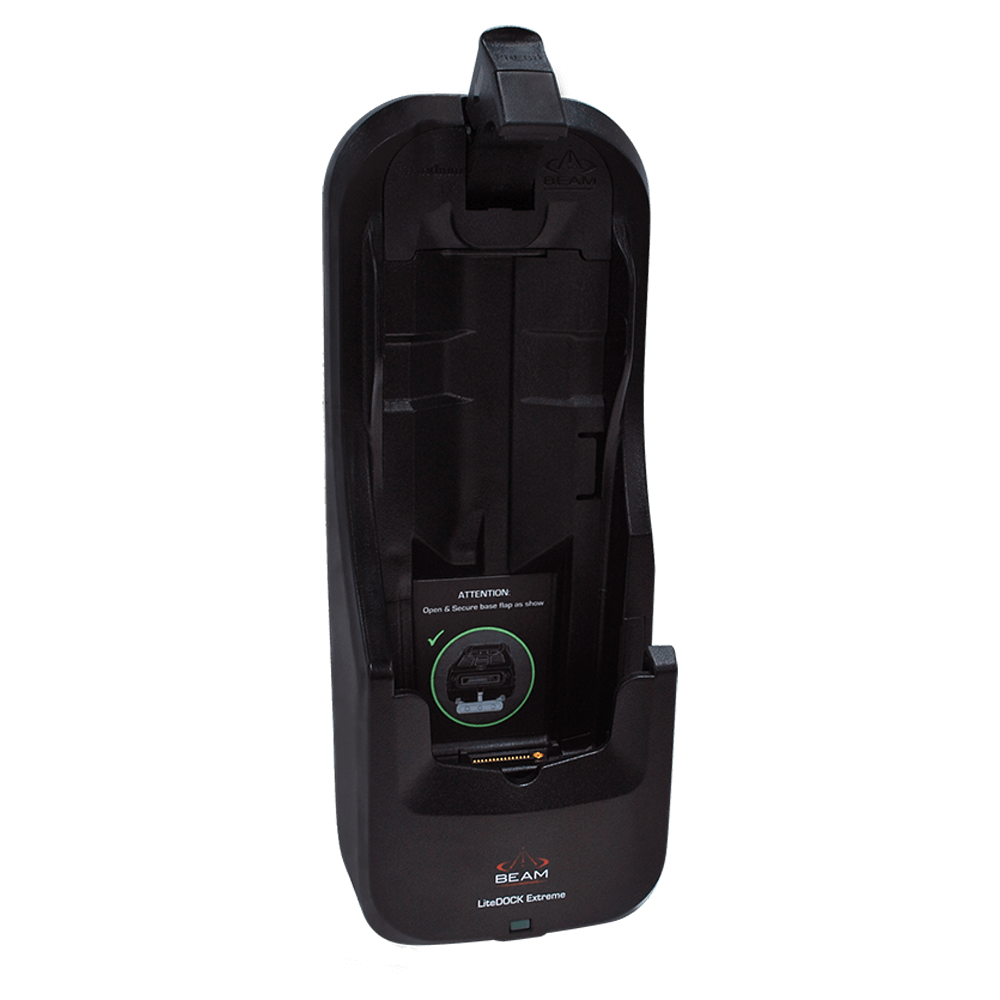

Beam LiteDOCK Extreme Docking Station (EXTRMLD)
- Satellite Network: Iridium
The Beam LiteDOCK Extreme, an Iridium 9575 dock, is an entry-level docking station for the Iridium 9575 handset that can be used in various maritime, transport or fixed site applications.
- The LiteDOCK Extreme is purposely built to allow you to utilise the SOS emergency, with an inbuilt GPS coupling capability that allows you to connect an external GPS antenna to the dock.
- Beam LiteDOCK Extreme features USB data port, phone charging, an integrated Iridium and GPS antenna, making it possible to keep all antenna cables permanently connected to the docking station, ready for use.

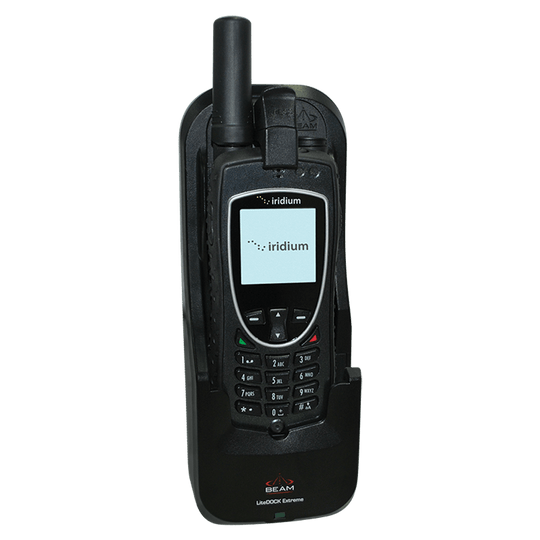

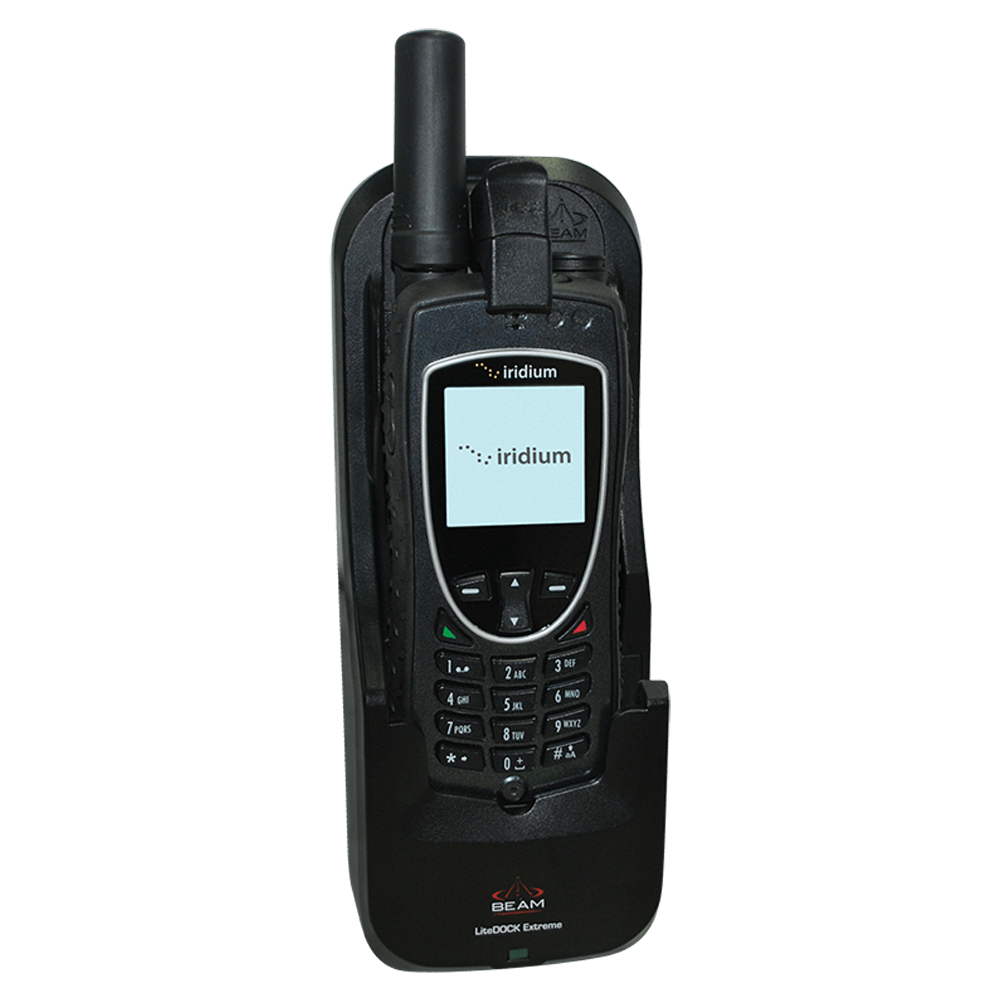

- The Iridium Extreme handset fits securely in the docking station with an easy click to lock mechanism that can be inserted and removed with a press of a button.
Compact Installation
The Iridium Extreme handset fits securely in the docking station with an easy click to lock mechanism that can be inserted and removed with a press of a button. It is purposely built to allow you to utilize the SOS emergency, with an inbuilt GPS coupling capability that allows you to connect an external GPS antenna to the dock.
Key Benefits and Features
- Slim line compact installation
- Voice, SMS, SBD and Circuit Switched Data capable
- USB data interface
- SMA Connectors – Iridium Antenna
- Full certified, Iridium, RoHS, CE, IEC60945
- 2 year repair or replacement warranty
LiteDOCK Extreme Specifications
Power
- Rated Input: 6V DC, 850mA max
- AC Power Pack: Not included (adaptor included with your Iridium handset)
- Average Power Consumption: 5 watts
Interfaces
- Data Port (USB): USB Mini-B 5-pin female (USB Slave).
- Iridium Antenna Connector: TNC-Female
- GPS Antenna Connector: Active 3.3V DC, SMA Female
- LEDs: Status LED
Environmental
- Operating Temperature: -22°F to 158°F (-30°C to 70°C)
- Charging Temperature: 32°F to 113°F (0°C to 45°C)
- Storage Temperature: -22°F to 176°F (-30°C to 80°C)
- Operating Humidity: < 85% RH non-condensing
Physical
- Dock: 3.24" W x 8.35" H x 2.99" D (82.2 mm W x 212 mm H x 75.9 mm D)
- Outer Box: 5.5" W x 4.9" D x 12.8" H (140 mm W x 125 mm D x 325 mm H)
- Dock: 0.83 lbs (0.375 kg)
- Box: 2.31 lbs (1.05 kg)
Certifications
- Iridium
- EMC Compliance
- CE Compliance
- Electrical Safety
- RoHS
- C-Tick
- *Independent Aeronautical certification MUST be gained prior to installation
What's in the Box
- LiteDOCK Extreme Cradle
- Universal Mounting Bracket (RAM)
- Quick Start Guide
