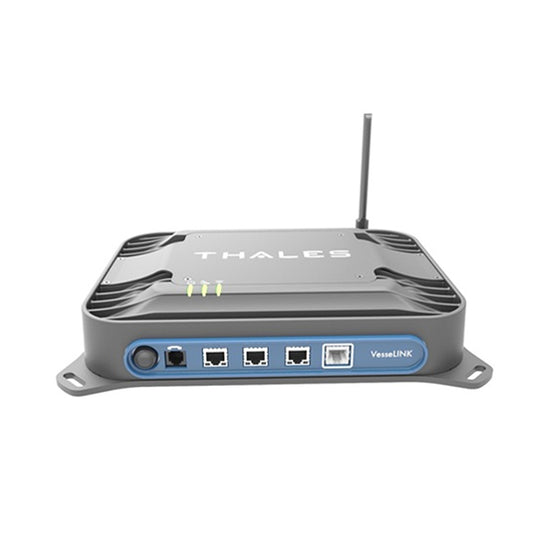

Thales VesseLINK 200
- Satellite Network: Iridium
Exclusive Iridium Certus® 200 Connectivity
Thales VesseLINK provides global satellite coverage for maritime communications. With uninterrupted coverage from pole to pole, it is the solution to depend on for essential communications. Suitable for ships or fleets of any size, VesseLINK easily integrates with your existing equipment to fully digitize your vessel. VesseLINK comes with an intuitive, user-friendly interface and can be quickly integrated into existing vessels or new fleets. It also includes built-in upgradeability to future-proof your investment and ensures peak speed and performance. VesseLINK operates using Iridium Certus broadband services over a network of 66 satellites that cover 100% of the globe, including deep oceans and poles. The solution utilizes this robust network service to provide highly reliable, mobile and essential voice, text and web communications with data speeds of up to 176 kpbs for captain and crew.
Same Coverage. Smaller Antenna
Thales VesseLINK 200 provides global satellite coverage for maritime communications. VesseLINK comes with an intuitive, user-friendly interface and can be quickly integrated into existing vessels or new fleets. It also includes built-in upgradeability to ensures peak speed and performance.
- Antenna: Low gain omni-directional antenna with no moving parts to enable truly global connectivity
- Simultaneous Functionality: Voice and data enabled delivering up to three (3) dedicated voice channels
- User-Friendly Interface: With application-enabled functionality for Android and iOS devices
- Range of Communications Applications: Location Tracking, Enhanced Reporting, Service Logging, Mobile Connectivity, System/Cargo Monitoring & Other Operational Requirements
- Wi-Fi Access Point: Embedded 802.11b/g Wi-Fi Access Point
- Maritime Safety: GMDSS-capable; will support Iridium GMDSS over Iridium Certus when available
Technical Specifications
- Below deck unit dimensions: 2.3″ H x 12″ W x 9″ D
- Terminal weight: 7.5 lbs
- Power options: Option 1: 10–32 VDC; Option 2: AC/DC supply with 12 VDC (65 watt nominal/120 watt maximum)
- IP rating: IP31
- Front connectors: RJ-45 LAN x 3; Class 2 PoE RJ-45 WAN x 1 for cellular, VSAT and other IP connections; RJ-14 POTS (2 independent phone lines)
- Rear connectors: DC Power Input (10–32V) MIL-STD-1275D, DC Power Input (+12V Regulated), GPIO (RS-232, +12V out, Emergency, Radio Gateway, Discrete I/O), TNC — RF connection to Antenna, Wi-Fi — Reverse SMA, SIM card slot
- Mechanical vibration and shock: MIL-STD-810G w/Change 1, Test Method 514.7, Category 4

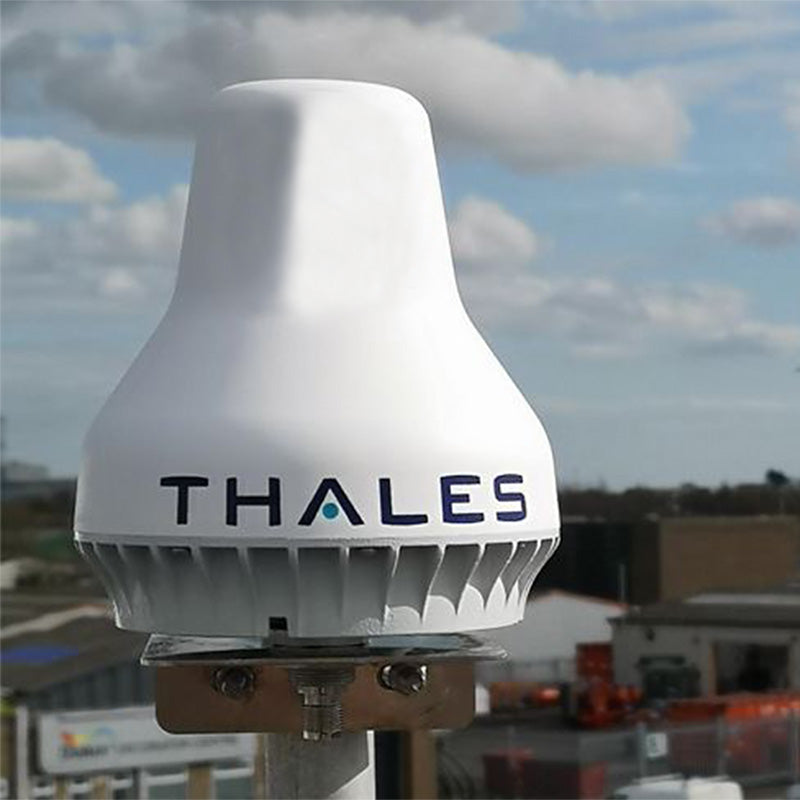

- Antenna dimensions: 5″ Dia. x 6.7″ H
- Weight: <1.5 lbs
- Power: Directly powered by the terminal at 24 VDC
- IP rating: IP67
- Operating temperature: -40 to 55°C
- Mechanical vibration and shock: MIL-STD-810G w/Change 1, Test Method 514.7, Category 4
Certifications
- FCC
- CE
- ISED
- ITU
- RCM
- GITECKI
- REACH ROHS
- EC60945 (IEC 60945)
- Maritime Navigation & Radio Communication Equipment (EMC) Emissions & Immunity Tested
