Intellian OW10HV Compact Flat Panel for Land Mobility

Book a Meeting to Discuss

Get a Quote

  • Network: OneWeb

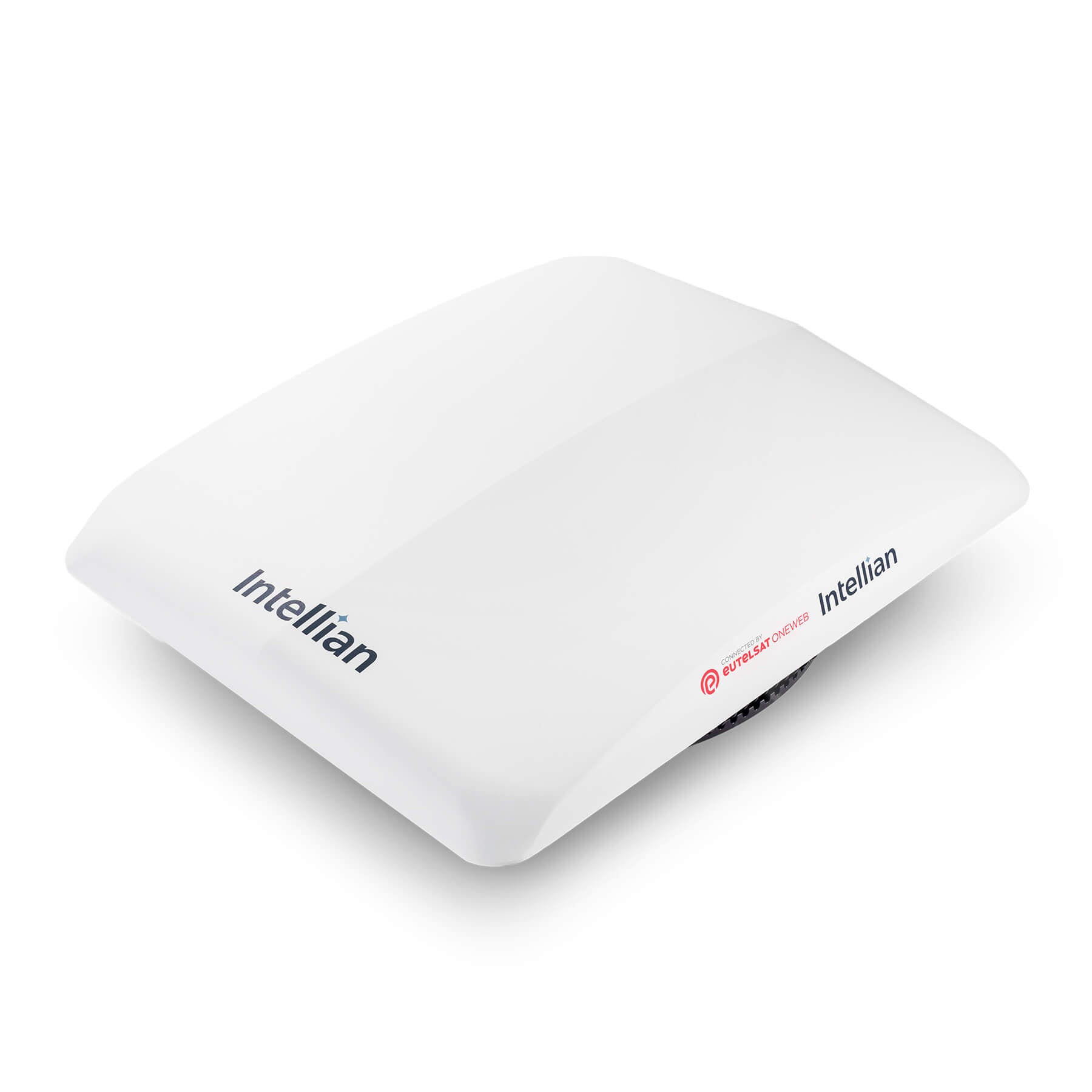

The OW10HV from Intellian delivers unprecedented speeds in a compact form factor.

Optimized for size, weight and power (SWaP), it features a low-profile weatherized design which delivers reliable connectivity to land mobile users.

The OW10HV delivers the ideal solution for mobile land across first responders, transportation, agriculture and forestry.

You Might Like These

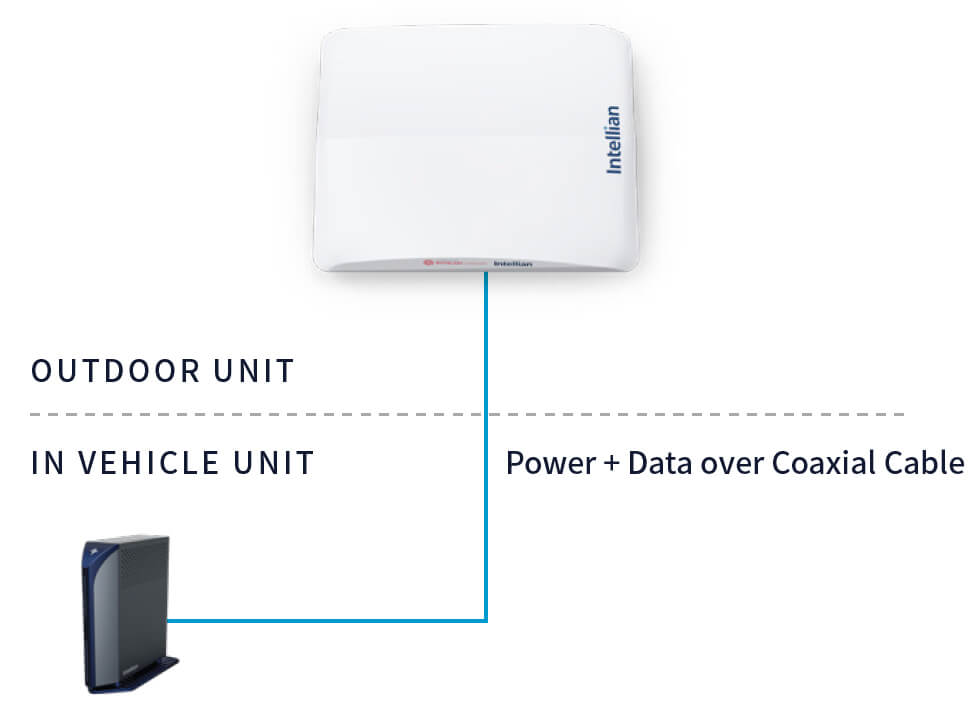

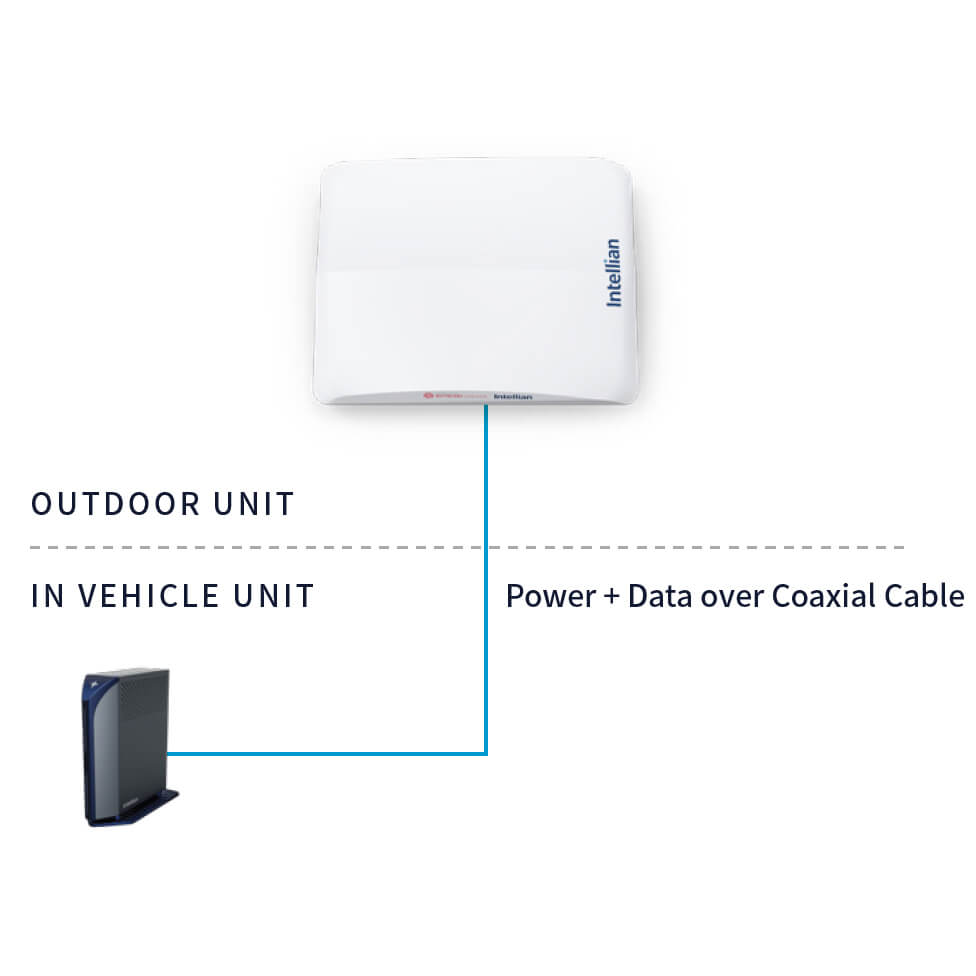

Intellian OW10HV system diagram

OW10HV Features

  • Optimized Performance: Utilizing Intellian’s innovative antenna design, the OW10HV delivers optimal performance in a compact form factor making it the ideal connectivity solution for use cases that are SWaP constrained. The resulting solution provides the user experience and service levels that customers expect.
  • Seamless Connectivity: The OW10HV features Intellian’s advanced tracking technology improving connection reliability and availability, even on heavy seas and at the lowest elevation angles encountered in equatorial regions. Ensuring minimal loss over scan, the innovative flat panel technology facilitates smooth reliable handovers, which ensure seamless and undisrupted connectivity.
  • Harsh Environment Performance: The OW10HV is designed to ensure dependable performance in even the most demanding environments, operating in extremely low temperatures down to -40°F and up to 131°F (-40°C to 55°C). Integrated radar rejection filtering ensures performance in high interference installations and reliable broadband services for customers situated in the most remote locations.

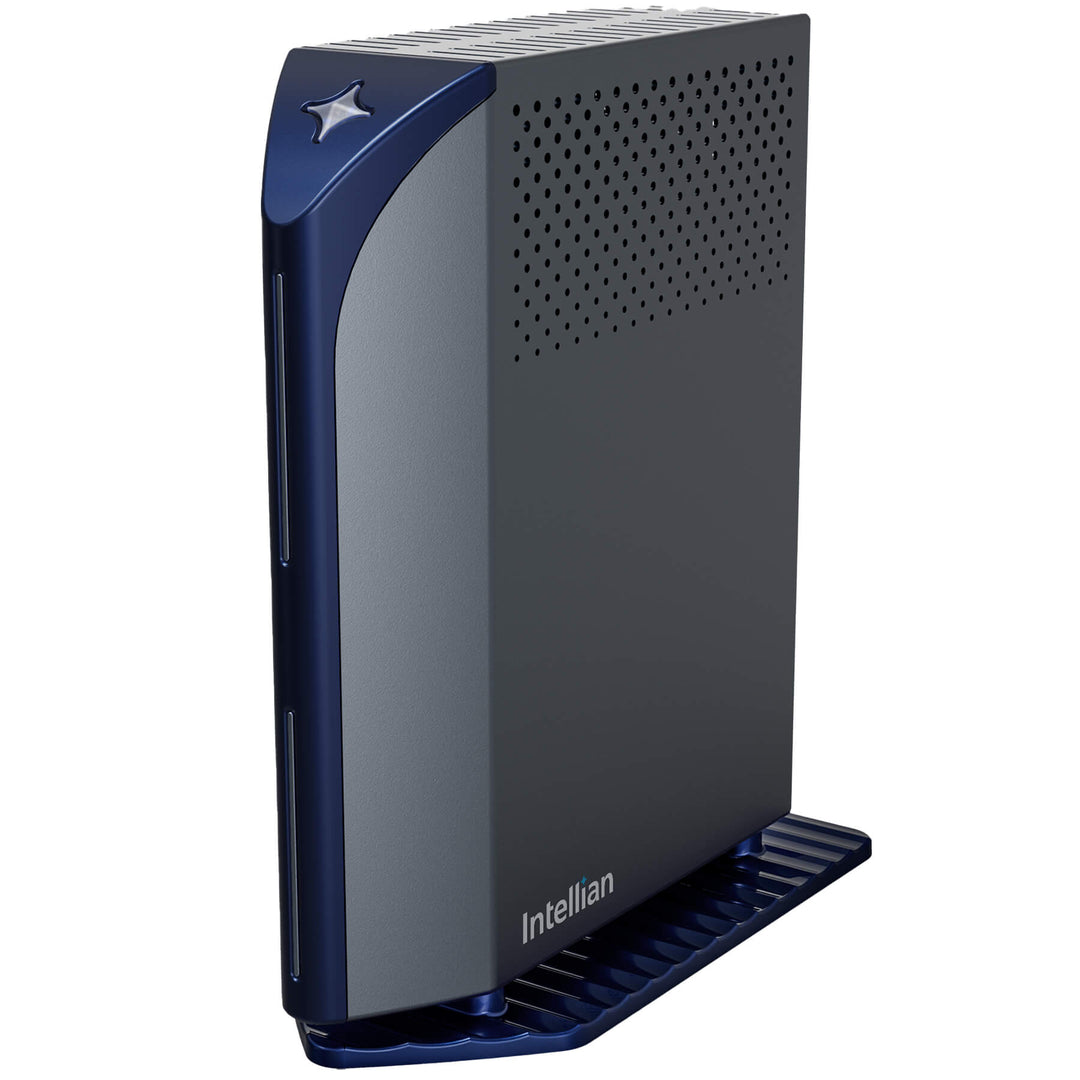

OW10HM CNX-WIFI
  • Simplified Installation: Lightweight and sleek design with a single coaxial cable for both power and encrypted data, connects the UT to the CNX. Embedded differential dual GNSS antennas enable automated True North calibration and Tilt Error compensation.
  • Customer Network Exchange: Intellian’s Customer Network Exchange (CNX) units are a critical component of the user terminal installation, providing both the power and data connectivity to the Flat Panel, and the connectivity to customer equipment and networks. For Compact Flat Panels there are four CNX variants offered for specific deployments: CNX-BB, CNX-WIFI, CNX-RACK and CNX-MOBILITY.
  • Easily Deployable System: The lightweight design and compact form factor enables easy installation by a single person. Designed for use with standard off-the-shelf mounting solutions, the OW10HL can be deployed in a variety of locations to suit the application and environment. Installation is further simplified through use of combined power and data over a single coax cable connecting the indoor and outdoor units. The use of Intellian’s mobile app for site survey, automated configuration, and monitoring further reduces the time required to get online.

Technical Specifications

Above Deck Unit

OW10HM

  • G/T: 9 dB/k
  • EIRP: +36.6 dBW (Dual Carrier)
  • Dimensions: 22" x 17.7" x 4.7" (56 x 45 x 12 cm)
  • Weight: 26.9 lb (12.2 kg)
  • Operating Temp: -40°F to 131°F (-40°C to 55°C)
  • Ingress: IP66
  • Interface: F-Type Port, SMA Port (R-GNSS)
  • Peak Downlink Data Rate: 75 Mbps*
  • Peak Uplink Data Rat: 14 Mbps*

*Performance subject to network
configuration.

Below Deck Units

CNX-BB

  • Dimensions: 5.1" x 4.7" x 1.6" (13 x 12 x 4 cm)
  • Weight: 0.55 lb (0.25 kg)
  • Operating Temp: 32°F to 104°F (0°C to 40°C)
  • Interface: 1-port GigE RJ45
  • PSA: External DC Power Supply, External AC Power Supply

CNX-WIFI

  • Dimensions: 8.2" x 6.7" x 3.1" (21 x 17 x 8 cm)
  • Weight: 0.6 lb (0.6 kg)
  • Operating Temp: 32°F to 104°F (0°C to 40°C)
  • Ingress: IP56
  • Interface: WiFi-6, 1-port GigE RJ45, F-type Port
  • PSA: External DC Power Supply, External AC Power Supply

CNX-MOBILITY

  • Dimensions: 11.8" x 7.9" x 1.6" (30 x 20 x 4 cm)
  • Weight: 3.3 lb (1.5 kg)
  • Operating Temp: -13°F to 131°F (-25°C to 55°C)
  • Ingress: IP56
  • Interface: WiFi-6, 1-port GigE RJ45, F-type Port
  • PSA: External DC Power Supply, External AC Power Supply

CNX-RACK-AC

  • Dimensions: 19" x 1 RU chassis (44.2 x 25 x 4.4 cm)
  • Weight: 13.9 lb (6.3 kg)
  • Operating Temp: -13°F to 131°F (-25°C to 55°C)
  • Ingress: IP31
  • Interface: 8-port GigE RJ45, WiFi Dongle, F-type Port
  • PSA: Embedded 450 W, Dual Power Modules
