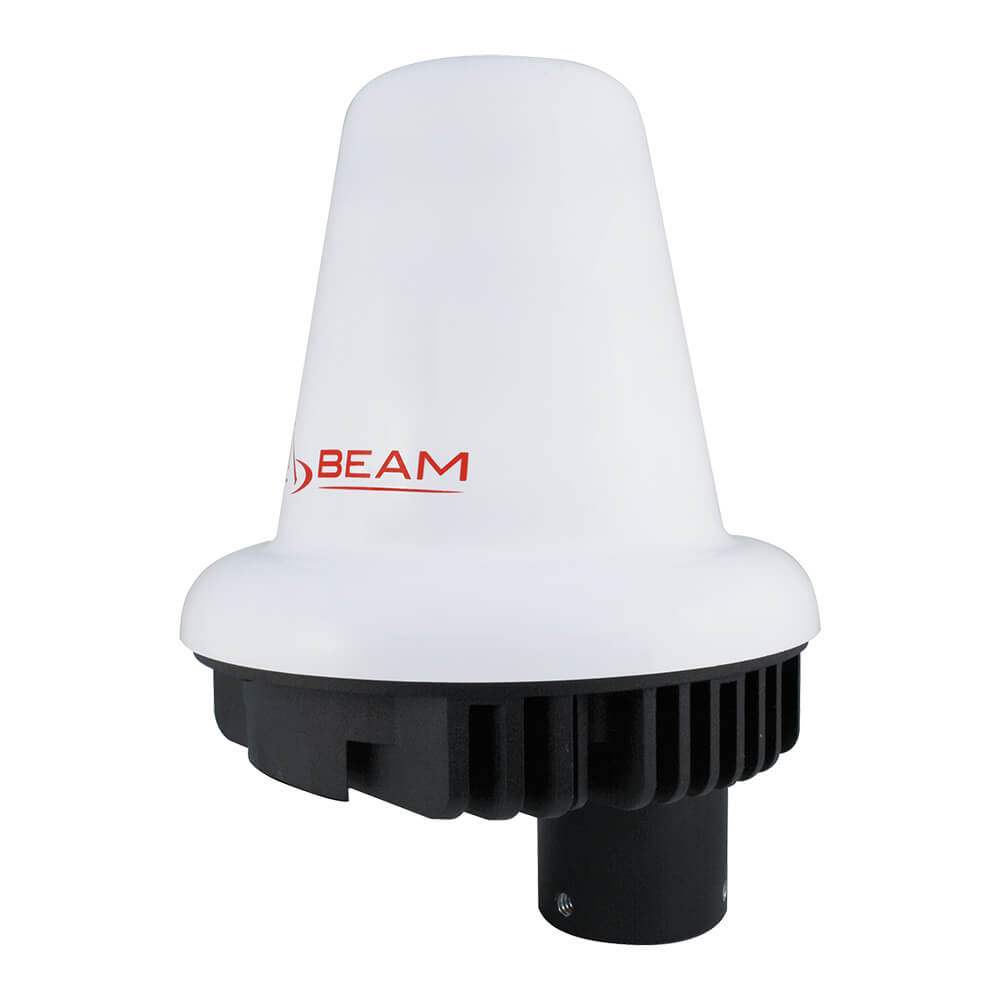

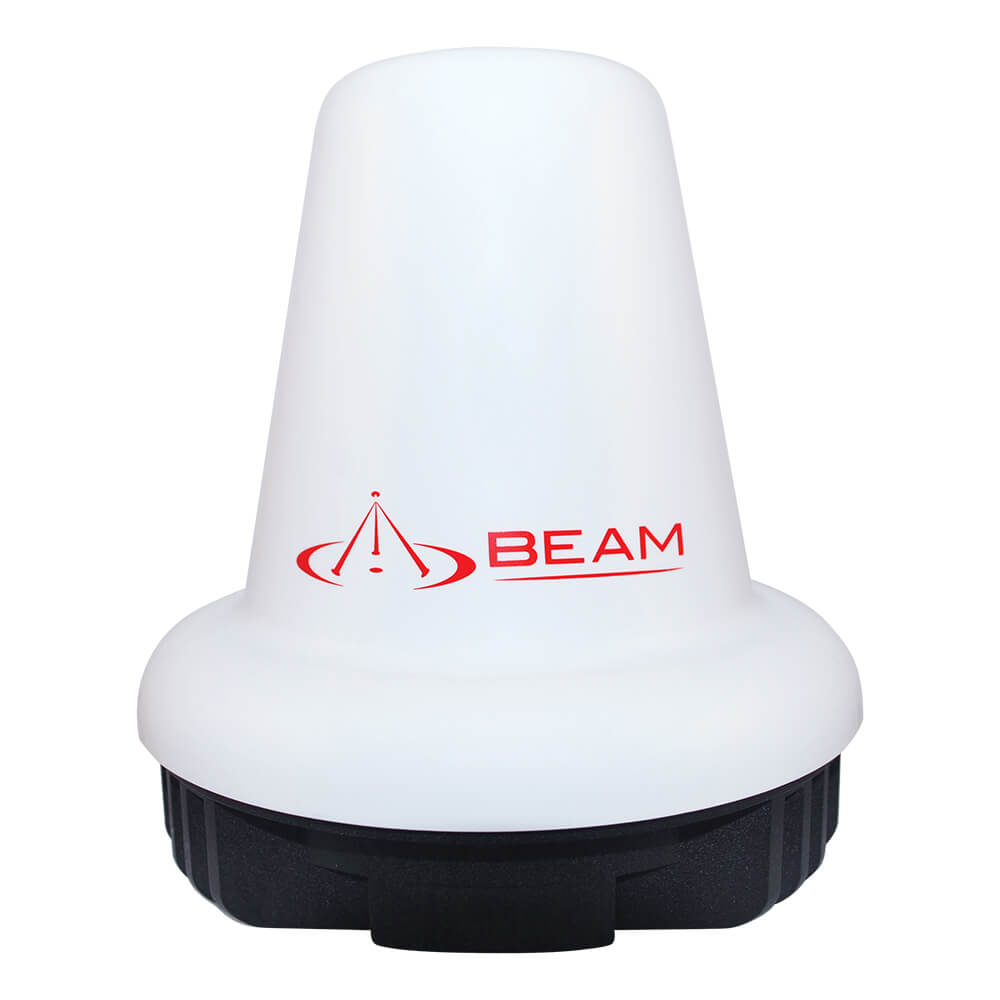

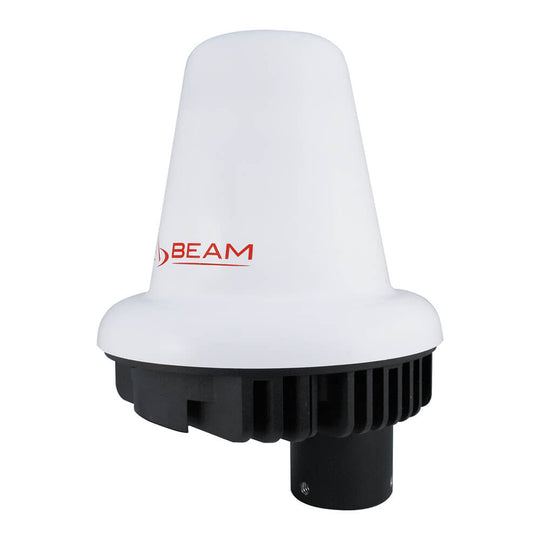

Beam Inmarsat Mast/Pole Marine Antenna Active (ISD710)
- Satellite Network: Inmarsat
The Inmarsat Mast Active Antenna ISD710 is a marine grade antenna for the Inmarsat GSPS service and whilst designed predominantly for maritime based applications, it can be also used in fixed site or mobile applications.

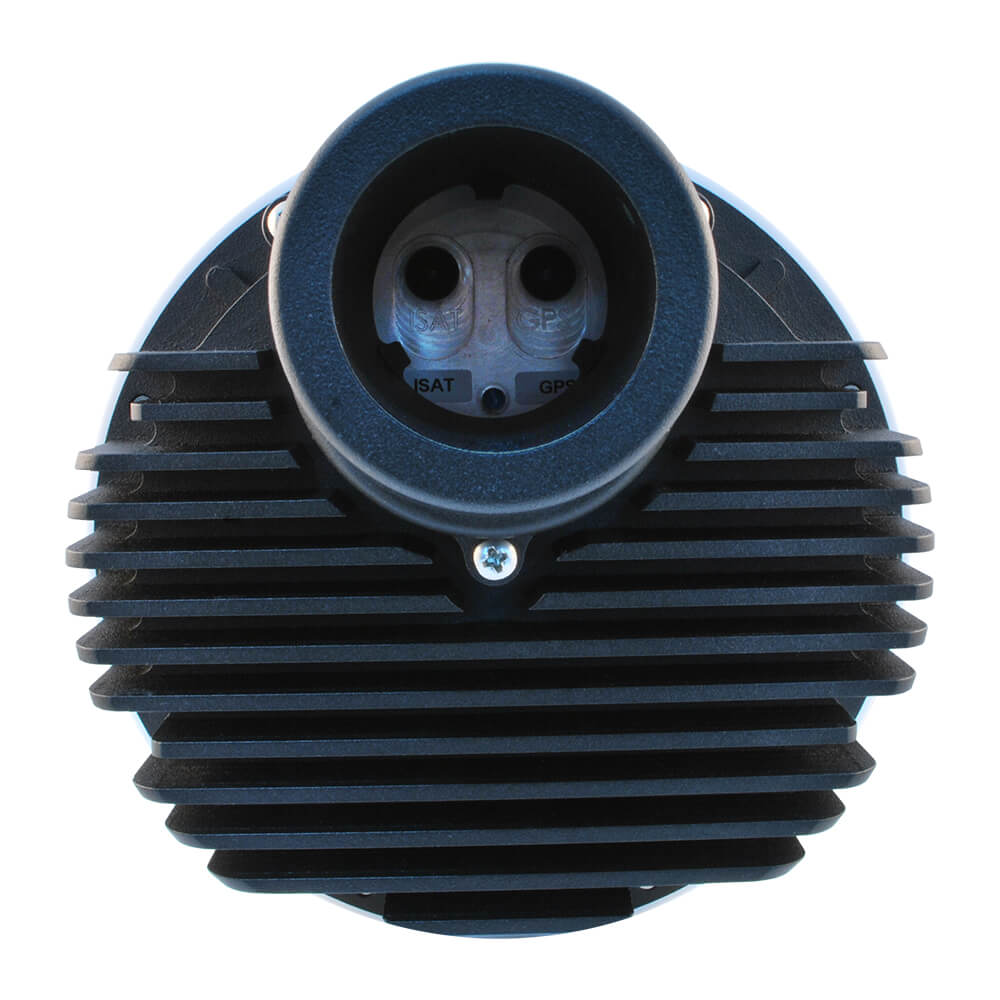

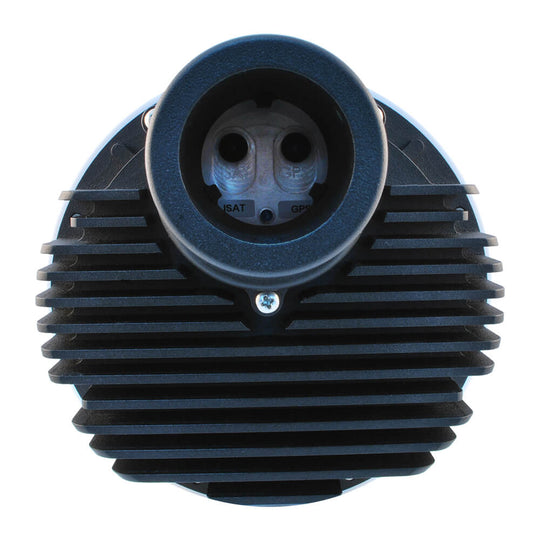

The antenna connections (GSPS and GPS) are protected from the environment with its solid bracket attached to the antenna. The pole mount system is designed so that the cables can be thread through a PVC pole and then attached to the antenna directly keeping the cables and the connector protected from the environment. The ISD710 works with all of the Beam Inmarsat IsatDock’s and Oceana terminals, however MUST only be used with Beam certified ACTIVE antenna cables.
ISD710 Features
- Inmarsat type approved
- High quality marine enclosure
- Active antenna
- Pole/Mast mounting
- SMA/SMA
- Omni directional
- 12 month repair or replacement warranty
Technical Specifications
- 8.15" x 5.60" x 5.60" (20.7cm x 14.2cm x 14.2cm)
- Weight: 1.92 lbs (870 g)
- Temperature range: -40°F to 158°F (-40°C to 70°C)
- IEC 60945 marine specification: -13°F to 131°F (-25°C to 55°C)
- Power supplied by IsatDock (no additional power required)
