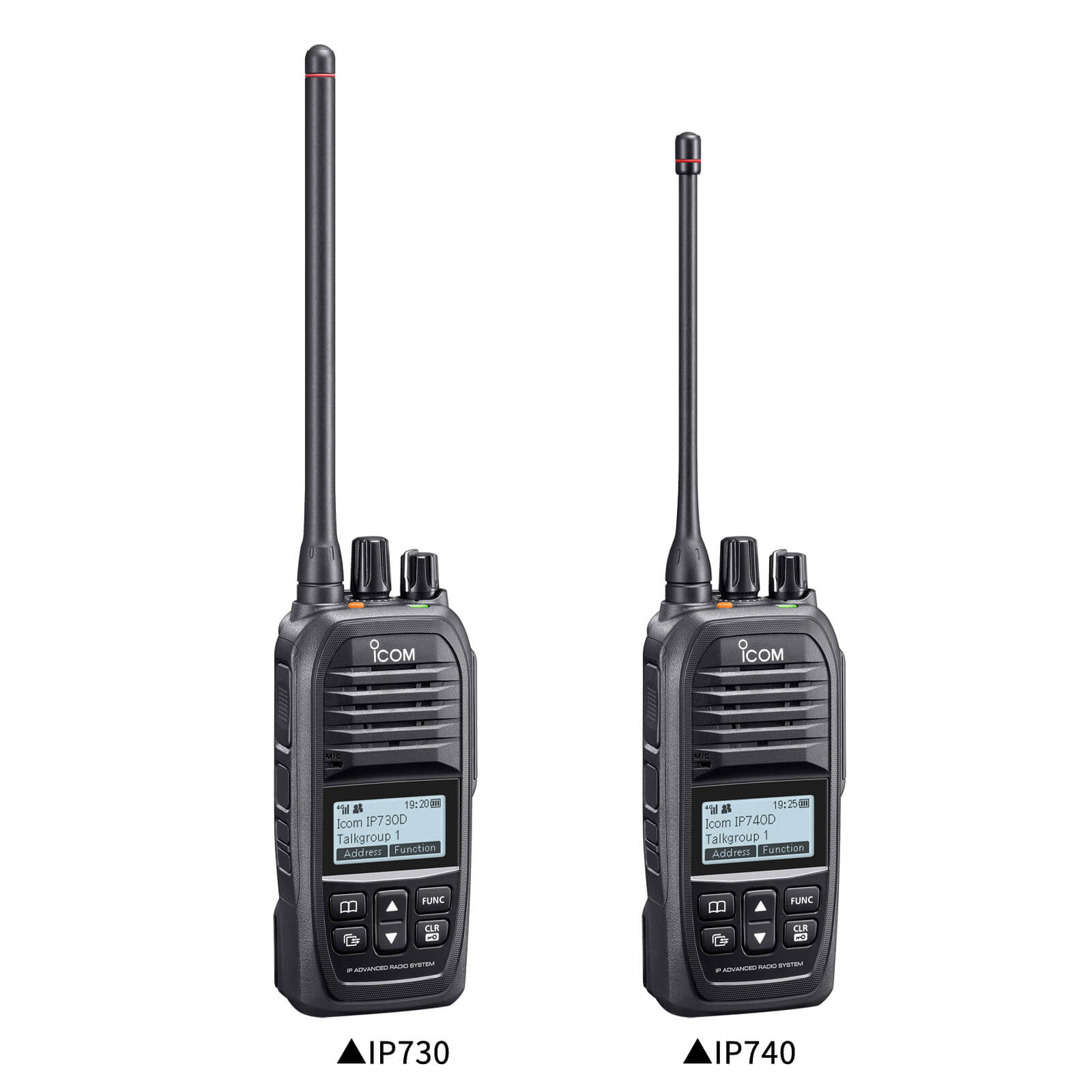

Icom IP730D/IP740D Portable Hybrid LTE/IDAS PTT Radios (Push-To-Talk)
- Network: LTE
Hybrid Handheld IP Radio for Local and Nationwide Communications
Icom’s IP730D is a revolutionary hybrid radio. With dual PTT buttons, the IP730D transmits and receives LTE, IDAS and analog networks to create nationwide coverage. The IP730D offers flexibility and assurance. Wherever coverage is needed, the IP730D is ready.

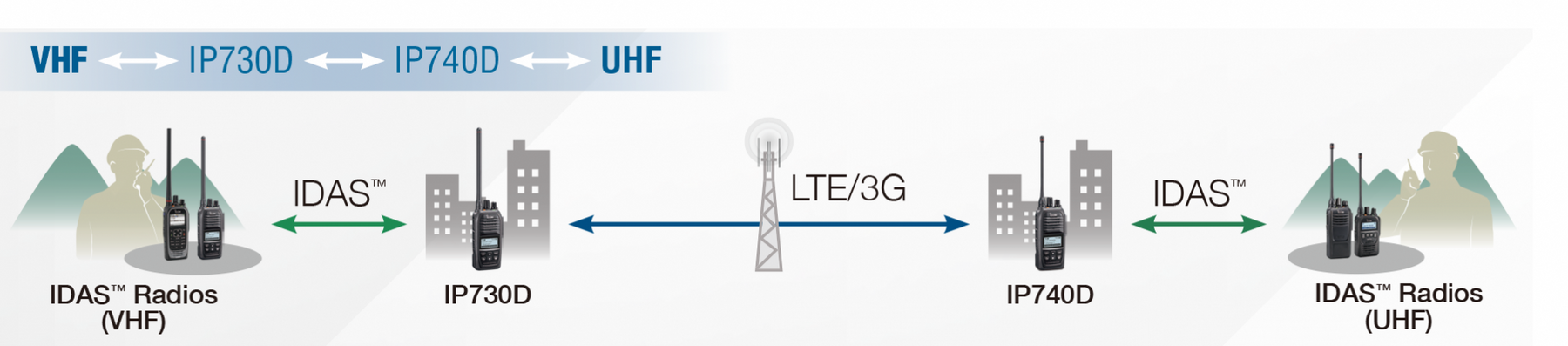

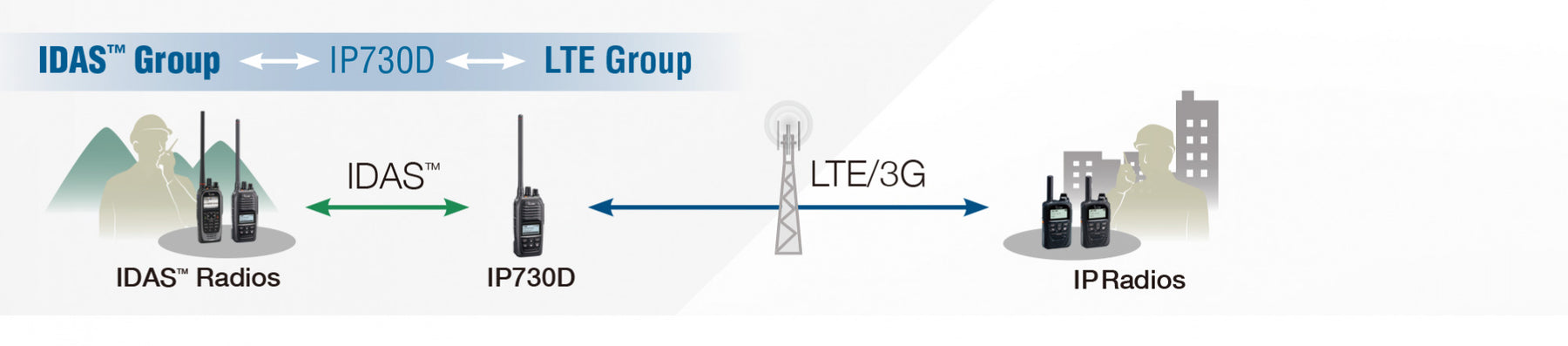

- Bridge Function: The Bridge function* relays received IDAS™ digital audio to the LTE radio group, while transferring the LTE radio conversations to the IDAS™ group. This function is useful when communicating outside of the LTE service coverage area with an IDAS™ radio, or temporary cross band connection between two IDAS™ radio groups using different frequencies or channels. (Not available in Analog mode).
- LTE Mode: LTE mode provides secure private push-to-talk communication over an LTE (4G) and 3G network*. The cellular network provides coverage into building basements or high-rise floors where conventional radio systems may not reach. *Network coverage provided by a custom SIM card. Service availability depends on the country.
- IDAS™ Mode: IDAS™ digital mode is a conventional VHF/UHF radio mode using licensed professional radio channels. It also provides Individual, Group and All calls with PTT operation. When operating in remote, mountainous areas, 4G/3G networks may not be available. Conventional VHF/UHF communications provide a stable, local alternative.

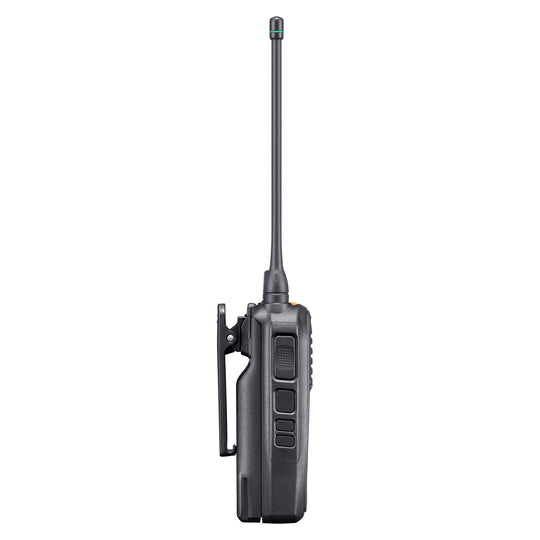

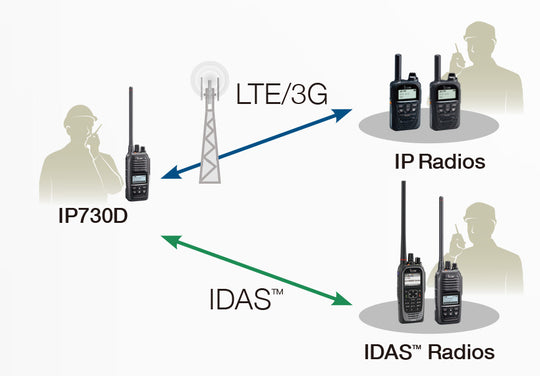

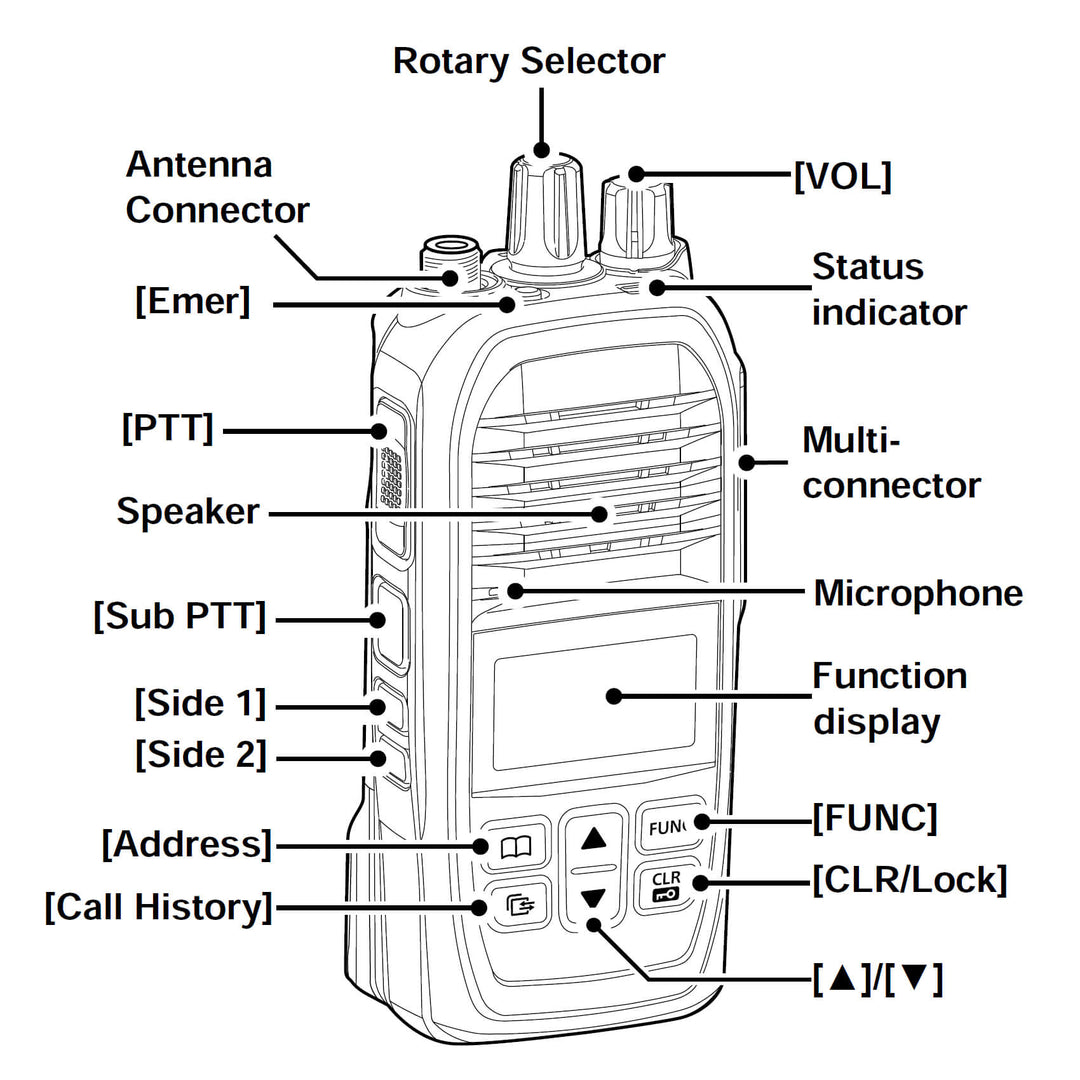

- Sub PTT Button for Dual Mode Operation: The IP730D series has two PTT buttons; the main PTT button and the sub PTT button. You can use one for LTE communication and the other for an IDAS™/Analog channel. The sub PTT button offers smooth switching between talking on LTE and IDAS™/Analog channels.
- Simultaneous TalkListen Function in LTE Mode: The Simultaneous TalkListen function provides full-duplex one-to-many communication in LTE mode which users can talk and receive at the same time like a telephone style conversation.
- 1500 mW Powerful Audio: Icom’s custom high-power capacity speaker delivers a loud 1500 mW* audio output with improved acoustic sound clarity for noisy environments. *Typical at 10% distortion.
- Built-in Bluetooth® Technology: Built-in Bluetooth capability provides wireless operation with a Bluetooth accessory. The optional Bluetooth® headset, VS-3 has PTT and programmable buttons.
- GPS Data Transmission Capability: The IP730D series has a built-in GPS receiver that can automatically transmit position data at programmed intervals*. (LTE mode only) *GPS mapping software is required separately. (Not supplied from Icom Inc.)

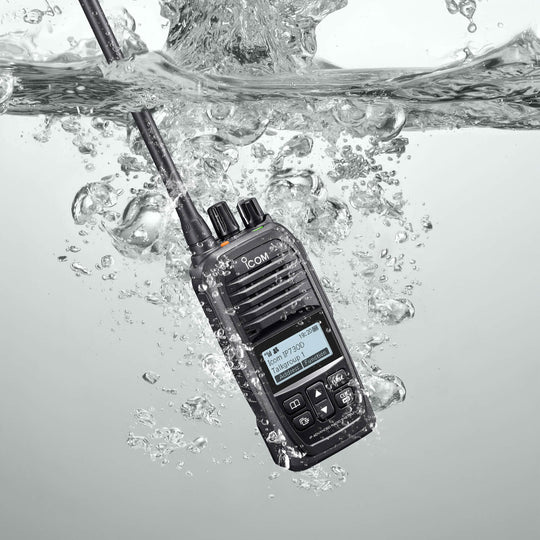

- IP67 Waterproof and Dust-Tight Specification: The IP730D series is durable enough to endure water pressure under 1- meter depth for 30 minutes, and has dust-tight protection. The radio meets MIL-STD-810 specifications.
- Emergency Call Features Specification: By holding down the orange emergency button, you can transmit an emergency call. In addition, the radio has three emergency related functions: Man Down, Lone Worker and Motion/Stationary Detection functions. If one of these functions is activated, the radio automatically transmits emergency signals to alert your controller or dispatcher of any potential trouble. (Common to LTE and IDAS™ mode)
- Digital Voice Recording/Playback: The IP730D series can record incoming calls of up to 4 minutes, or a maximum of 10 messages, and the user can check recorded communications.

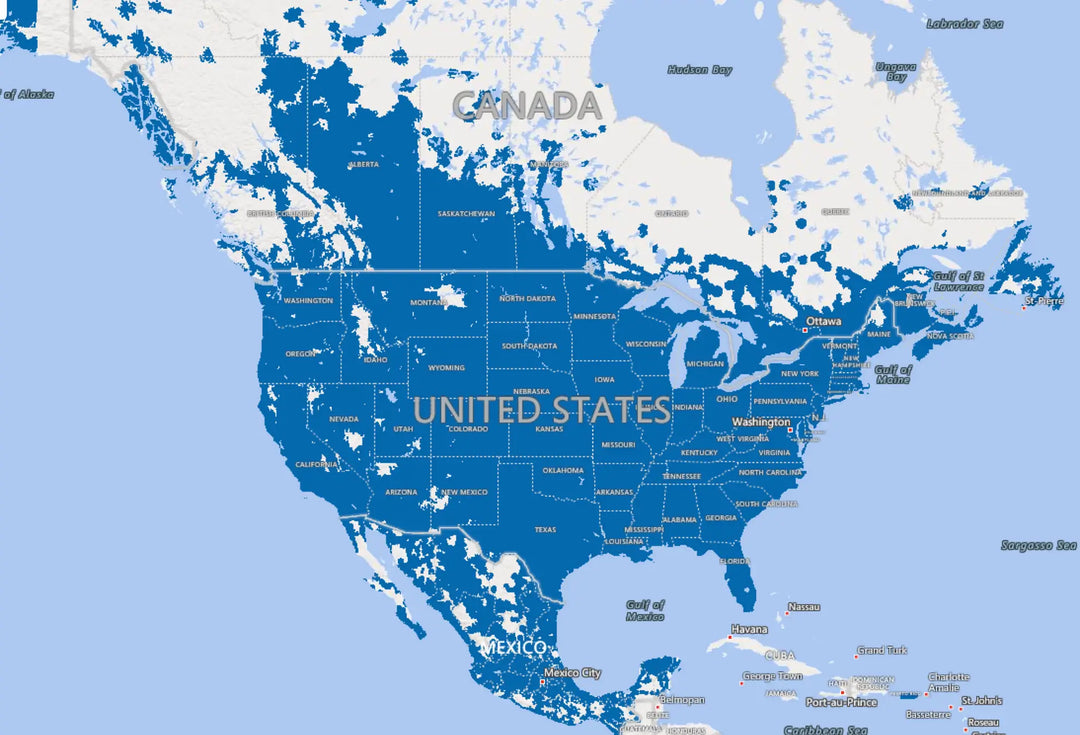

*Service availability depends on the country. Network coverage provided by custom ICOM SIM card.
