Icom IP501H Portable LTE PPT Radio (Push-To-Talk)

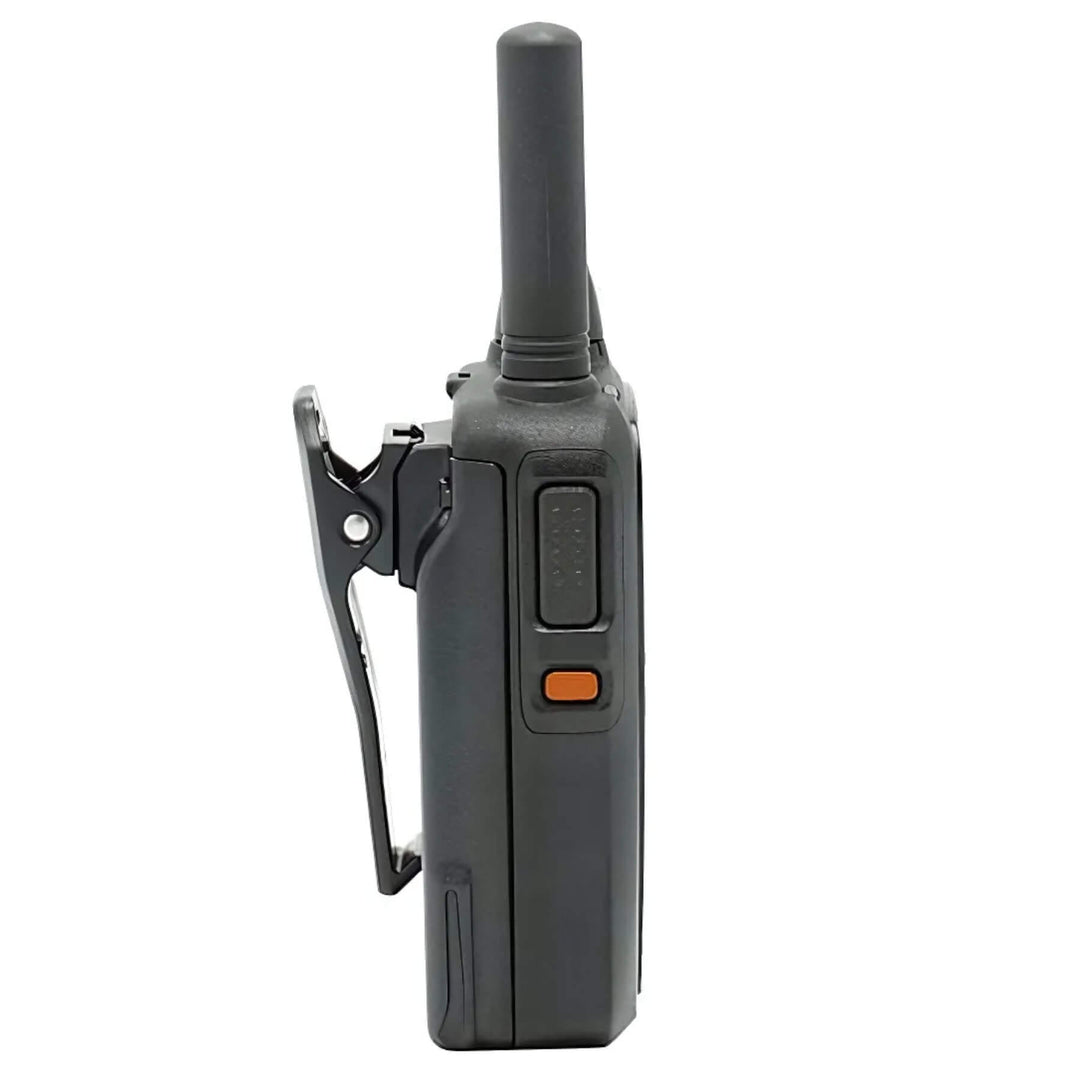

Icom IP501H side

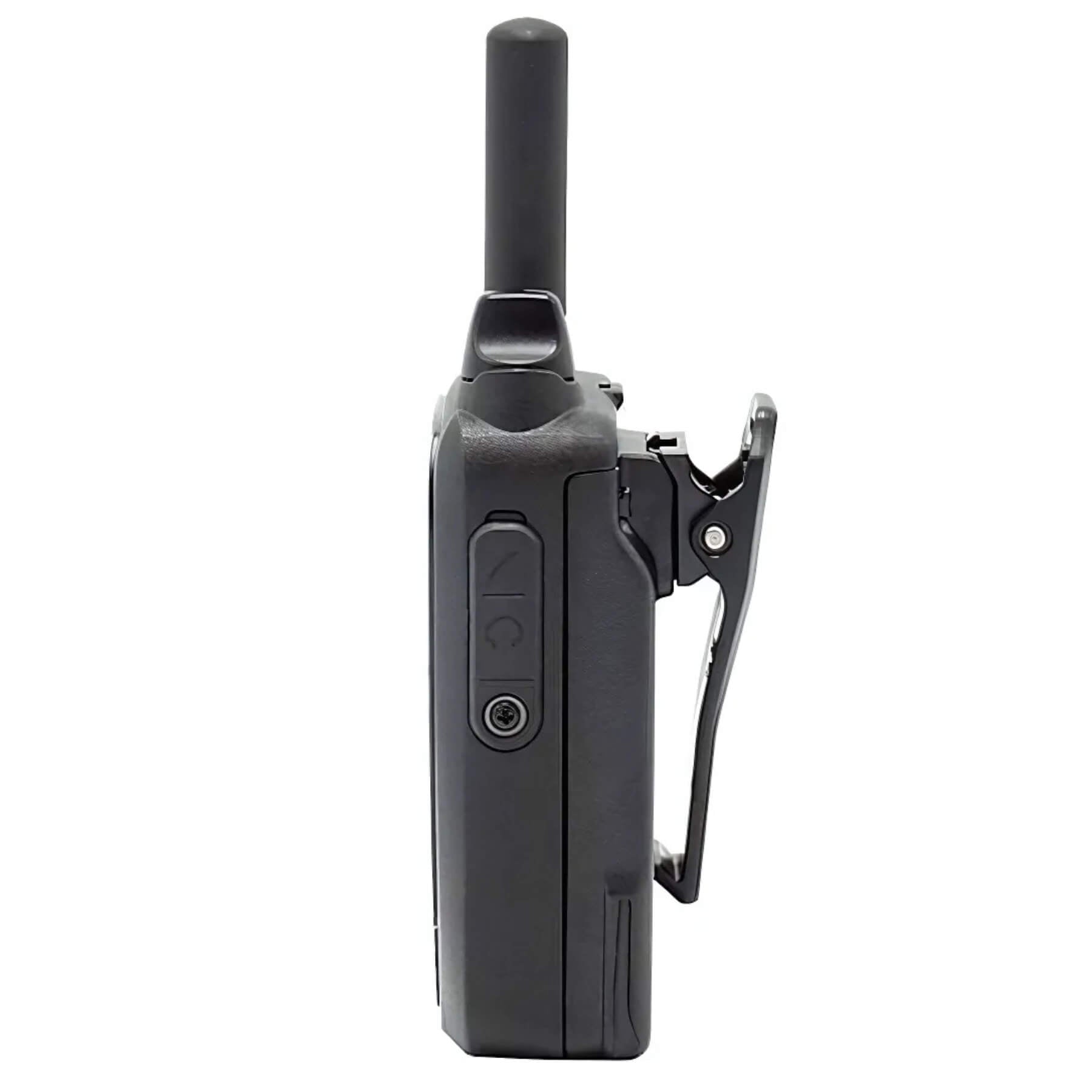

Icom IP501H side

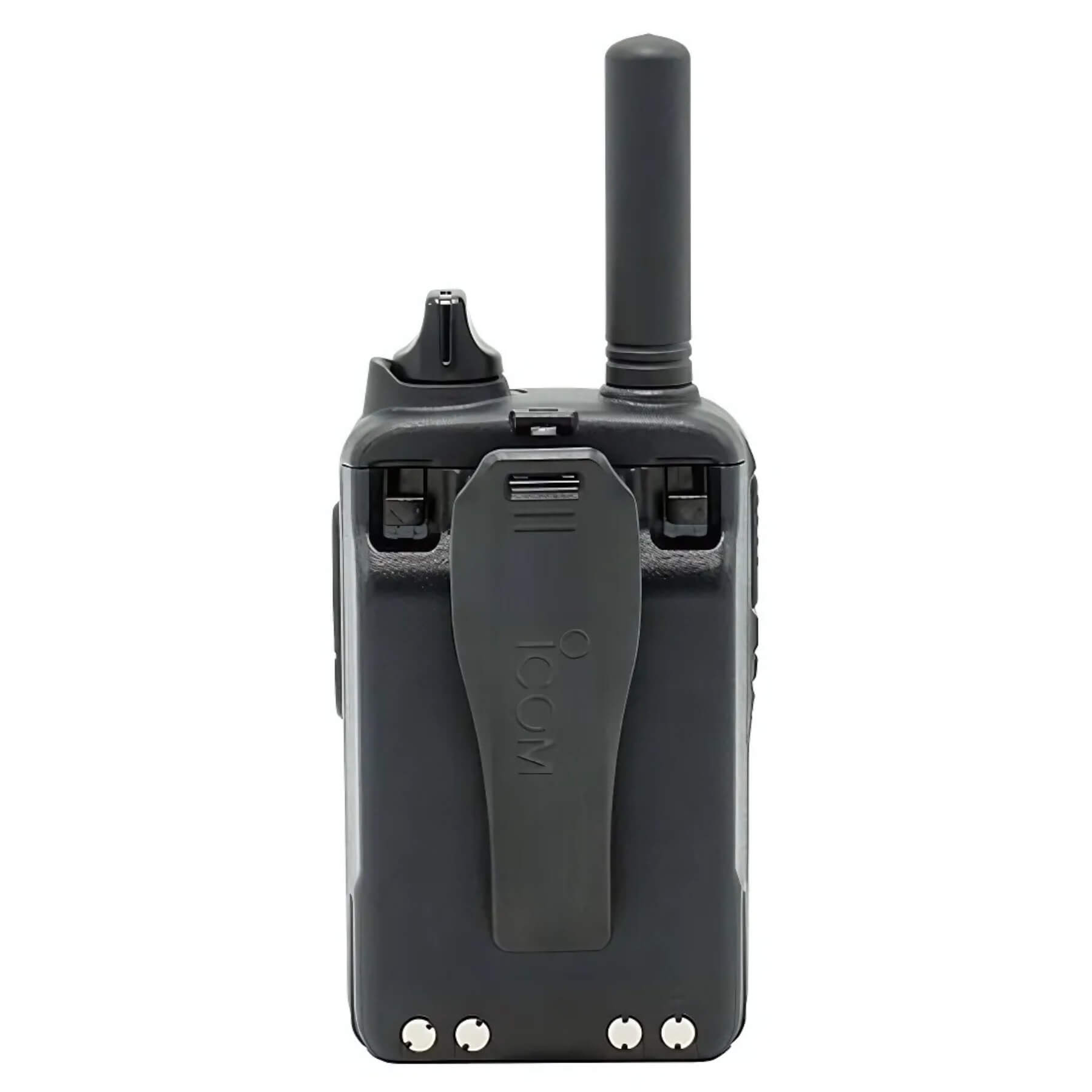

Icom IP501H back

Icom IP501H Portable LTE PTT Radio (Push-To-Talk)

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

  • Network: LTE

Instant Wide Area Coverage Over an LTE (4G) and 3G Cellular Network

The Icom IP501H provides wide-area communication using an LTE (4G) and 3G network and instantaneous communication. Individual calls, Group calls, or All calls can be made the same way as a conventional two-way radio. The IP501H does not require its own repeaters or IP network, which reduces the costs of building and maintaining a wide area radio network.

  • Communication throughout the Coverage of LTE (4G) and 3G Network: Using an existing LTE (4G) and 3G network, the IP501H is able to provide a network with wide area coverage capabilities. The IP501H does not require its own repeaters or IP network which reduces the cost of building and maintaining a wide area radio network.
  • Simultaneous TalkListen Function for Full-Duplex Communication: The Simultaneous TalkListen function provides full-duplex one-to-many communication which users can talk and receive at the same time like a telephone style conversation.
  • Multiple User Communication: Multiple users in the call groups can initiate calls instantaneously. Removing the need to wait for available channels to communicate.
  • Priority Interrupt Calling: The IP501H supports group calls with three or more people. In case of an emergency, you can break into an on-going call to transmit an important message.
  • Industry Leading Compact and Lightweight Body: Compact and lightweight body allows non-intrusive mobility and use.
  • IP67 Dust-Tight and Waterproof: The IP501H has been designed to preserve its waterproof integrity in water of a depth of 1 meter for up to 30 minutes. It can be used for outdoor work or places prone to get wet.
  • Interconnect between IDAS™ and IP100H Systems: With a VE-PG4, the IP501H system provides interoperability with an IP phone, analogue transceiver, IDAS™ digital transceiver and IP100H wireless LAN network systems. In addition, GPS position data can be obtained from the IP501H transceiver.

*Service availability depends on the country. Network coverage provided by custom ICOM SIM card.

Icom Solutions for Utilities (LTE, Hybrid and Satellite Transceivers)

Icom IP501H Features

Icom IP501H Features

  • Instant Wide Area Coverage Over LTE
  • Communicate effectively with full-duplex communication that provides smooth telephone style conversations
  • Priority interrupt calling
  • High-quality, clear audio using G.726 Vocoder
  • Individual, group, talkgroup, multiplex talkgroup, and all calls
  • Emergency button, Lone Worker, and Man Down functions
  • Vibration alert function notifies of an incoming call
  • Text message reception and preprogrammed message transmission
  • Up to 500 memory address book (including individual, group, talkgroup and telephone lists)
  • Voice message recording

Icom CONNECT Coverage

Icom CONNECT uses (4G) networks in the US and Canada. This map displays approximate outdoor coverage. Actual coverage may vary. Coverage isn’t guaranteed and is subject to change without notice.

Icom CONNECT Coverage

Technical Specifications

Mechanical

  • Dimensions (with BP-272): 2.3" W × 3.7" H × 1.3" D (59 × 95 × 32 mm)
  • Weight (with BP-272 and antenna): 8.5 oz (240 g)

Operation

  • Operating time (5:5:90 duty cycle.): More than 17 hours (with BP-272)

Environmental

  • Operating Temperature Range: 14°F to 140°F (–10°C to 60°C)
  • Durability Standard: MIL 810 G
  • Ingress Protection: IP67/55/54

AF Output Power

  • Internal SP: 400 mW (16 Ω at 10% distortion)
  • External SP: 200 mW (8 Ω at 10% distortion)

Network

  • 4G bands: LTE B2, B4, B5, B17
  • 3G bands: W-CDMA B2, B5

Technical

  • Voice Codec: G.726 (32 kbps)
  • Bluetooth: Ver 2.1 +EDR
  • GPS: Built-in

What's in the Box

  • Icom IP501H Portable LTE PPT Radio
  • Battery pack, BP-272
  • Belt clip, MB-135
  • Hand strap
  • Antenna
Icom IP501H Portable LTE PPT Radio What's in the Box

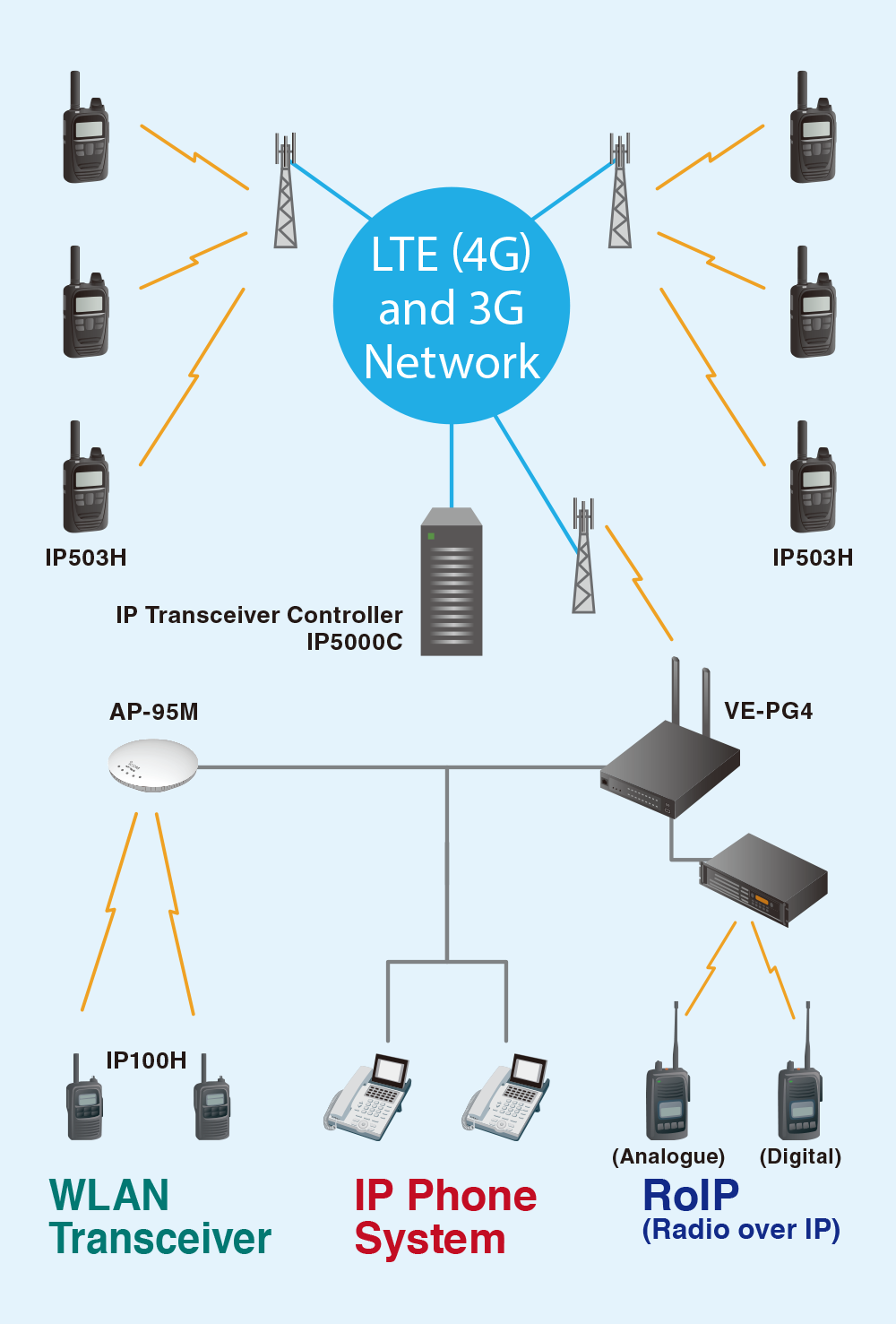

Interconnect between IDAS™ and IP100H Systems

Interconnect between IDAS™ and IP100H Systems

With a VE-PG4, the IP501H system provides interoperability with an IP phone, analogue transceiver, IDAS™ digital transceiver and IP100H wireless LAN network systems. In addition, GPS position data can be obtained from the IP501H transceiver*.

*GPS mapping software required for GPS data.
