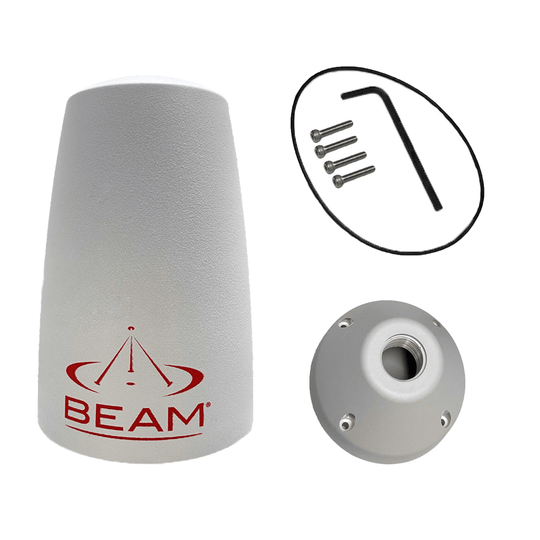

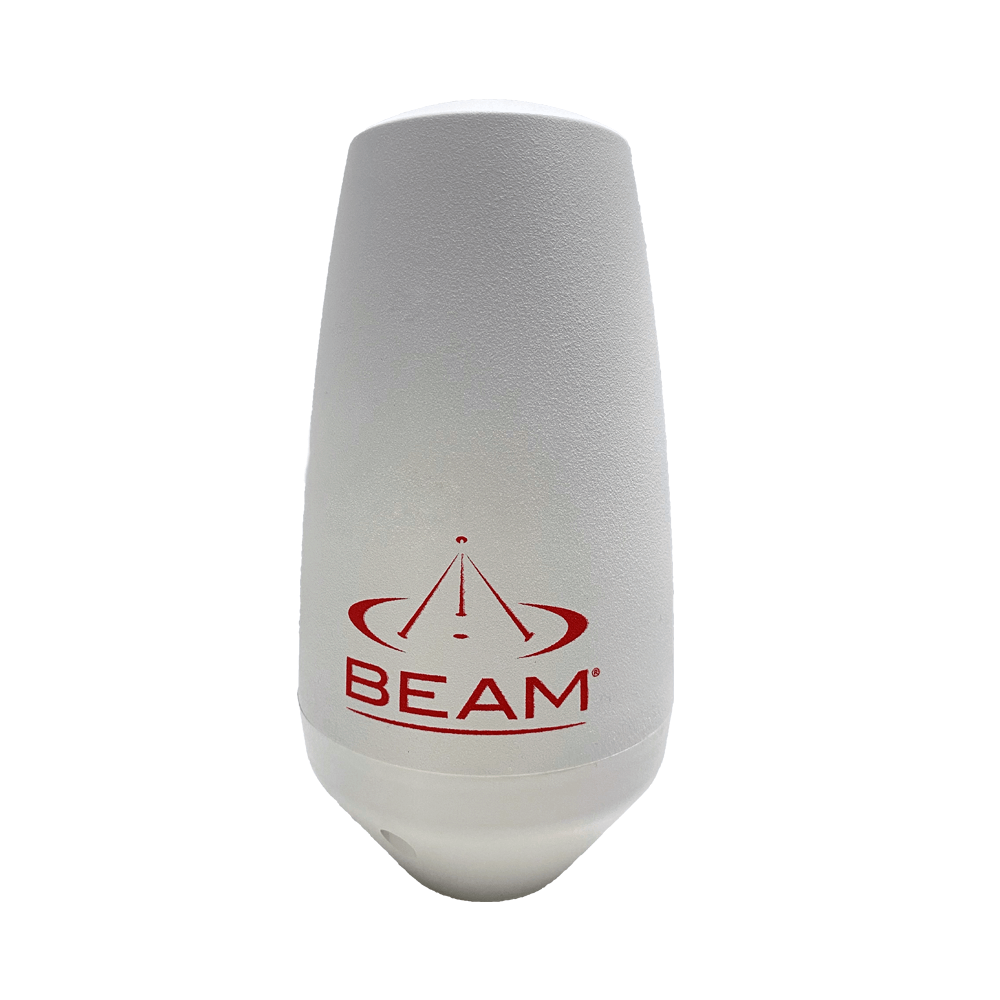

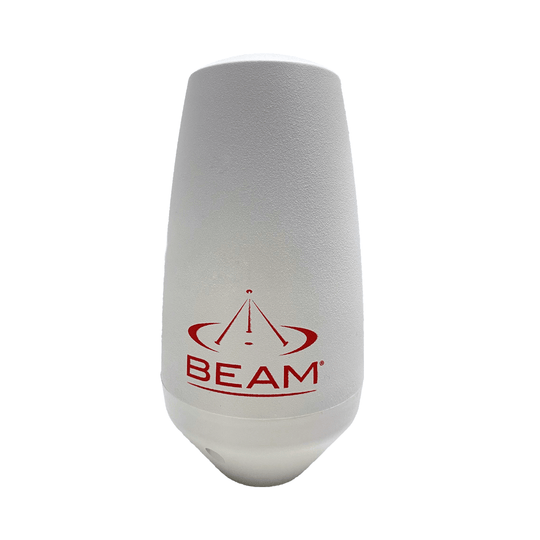

Beam Mast/Pole/Rail Mount Antenna (RST210)
- Satellite Network: Iridium
Please note, the RST210 is no longer available and has been replaced with the AeroAntenna Iridium Antenna Mast Mount.
The RST210 is an omni-directional passive antenna for easy installation. Designed for maritime and fixed building applications, the RST210 has a rugged design making it ideal for harsh weather conditions. The RST210 is not suited to land based transport applications.
RST210 Features
- Iridium Approved
- Best suited for Maritime applications
- Designed for tough weather conditions (IP68)

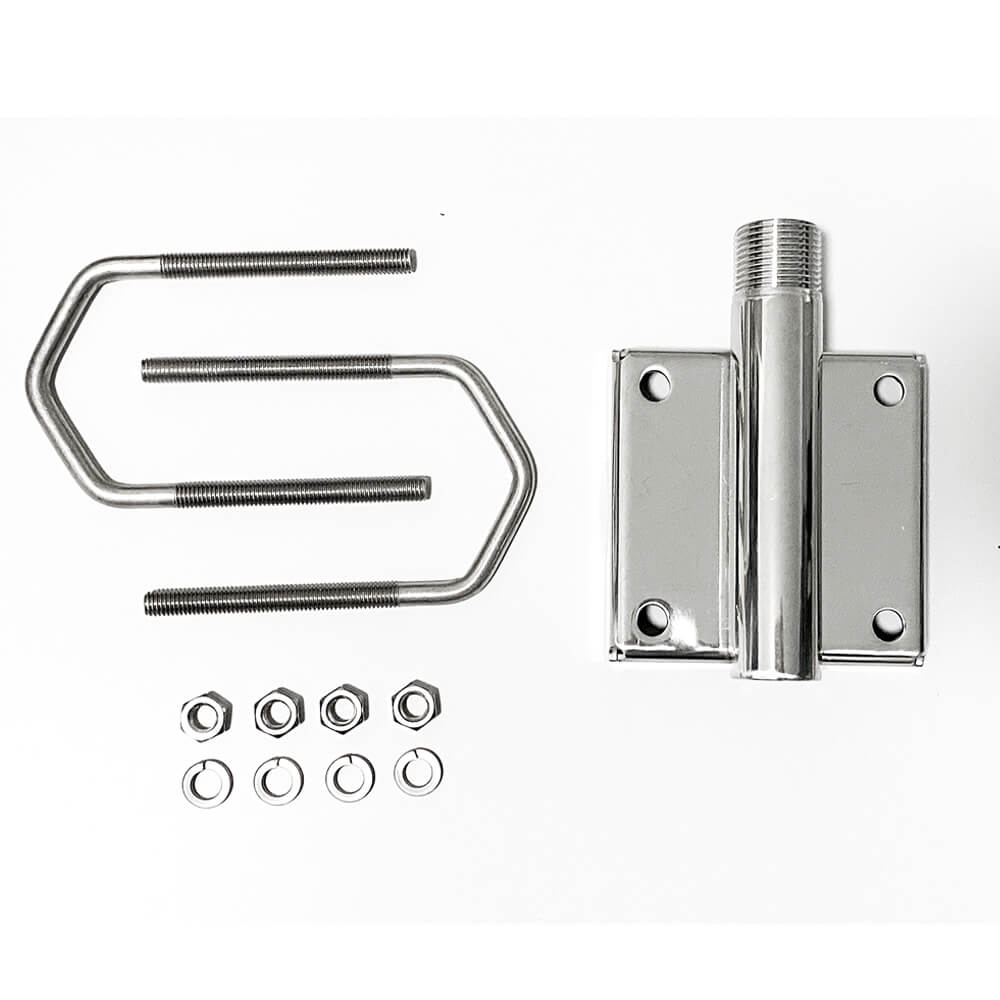

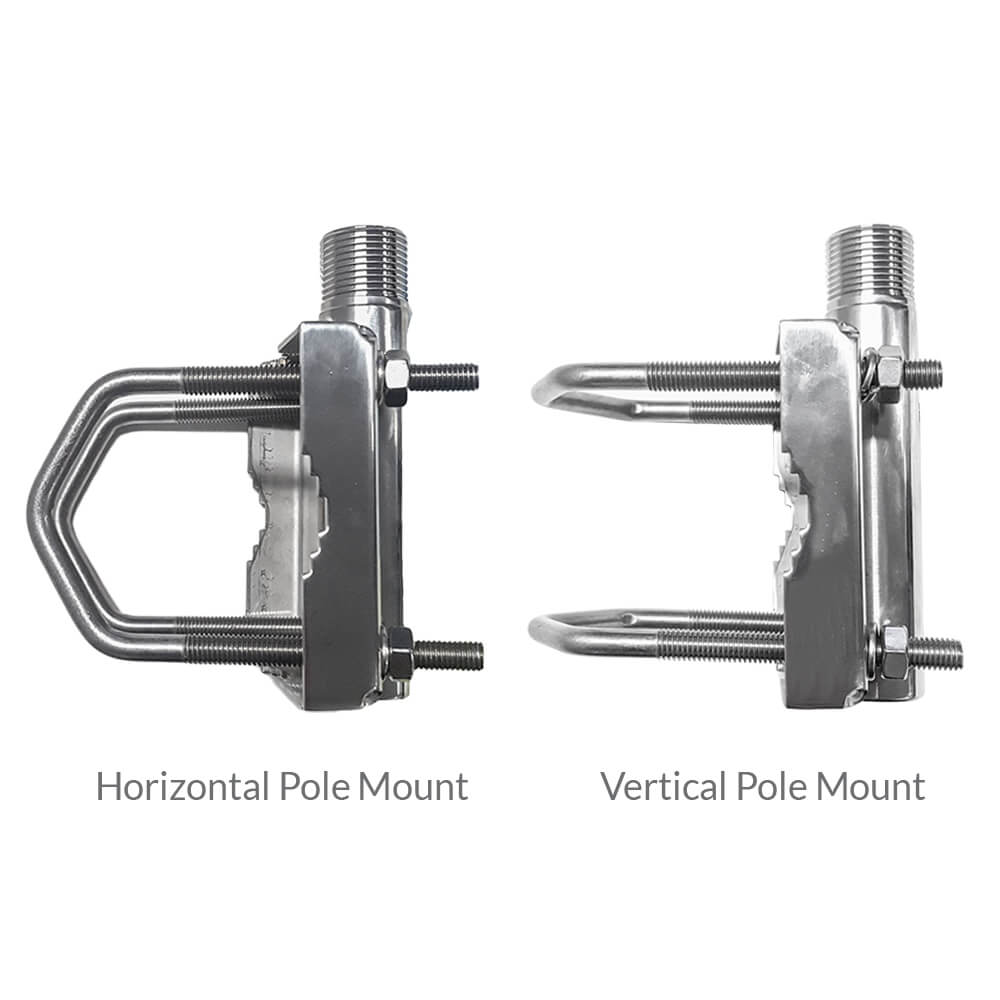

- Mounts on any US-style Mounting Bracket with 1"-14NF threaded stud (not supplied)
- 12-Month Warranty
Technical Specifications
- Colour: White
- Material: ASA
- Mounting Type: Any US-style Mounting Bracket with 1
- Ingress Protection: IP68 Dustproof and waterproof - can be submerged in water for 30 minutes at a depth of 1-meter
- Antenna Dimensions (D x H): Ø 3.7" x 6" (7.5" mounting base included) (Ø 9.5cm X 15cm (19.15cm mounting base included))
- Box(L x W x H): 5" x 11.4" x 4" (12.7cm x 29cm x 102cm)
- Antenna Weight: 1.9lbs (0.87 kg) (inc bracket)
- Operating and Storage Temperature: -40°F to 158°F (-40°C to 70°C)
- Frequency: 1616-1626.5 MHz
- Polarization Right Hand Circular
- Axial Ratio: < 6 dB
- Impedance: 50 Ohms
- VSWR: < 1.5
- Cable: No cables supplied

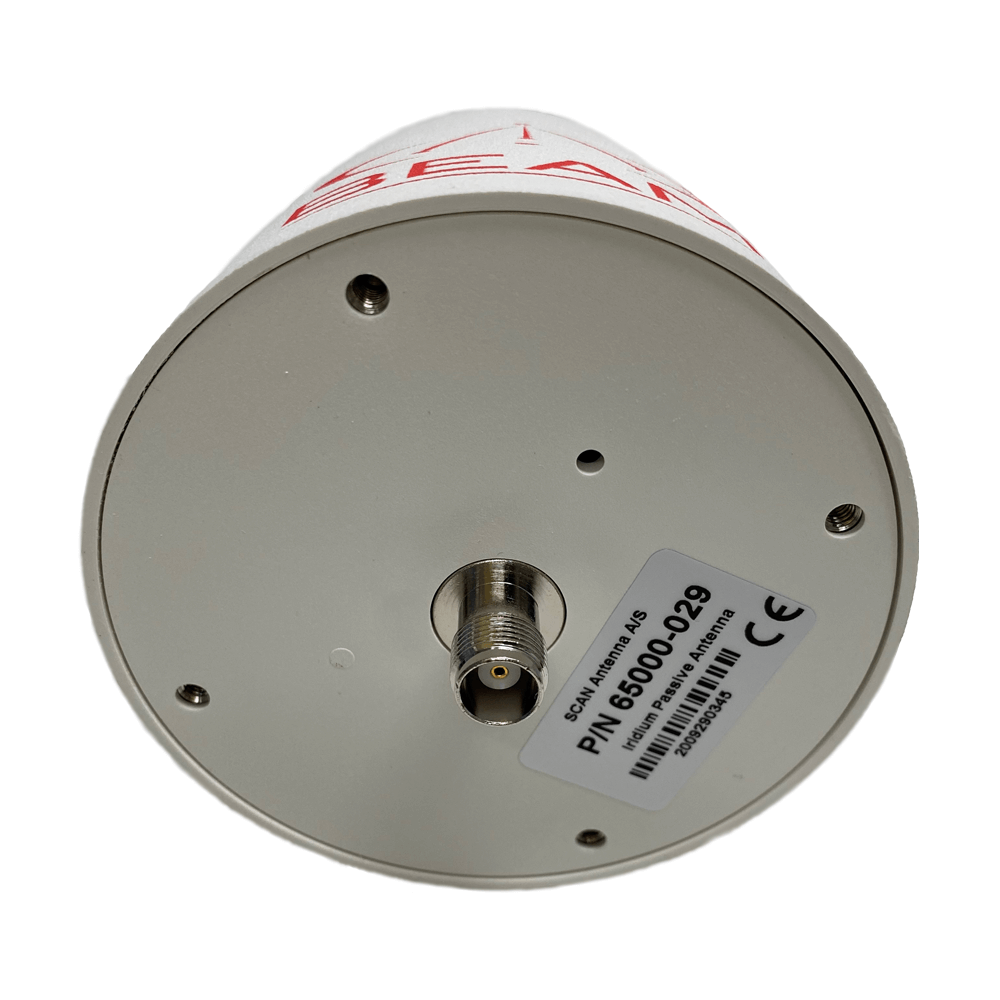

- Iridium Connector: TNC-F
