Beam PotsDOCK 9555 Docking Station (9555PD)
- Satellite Network: Iridium

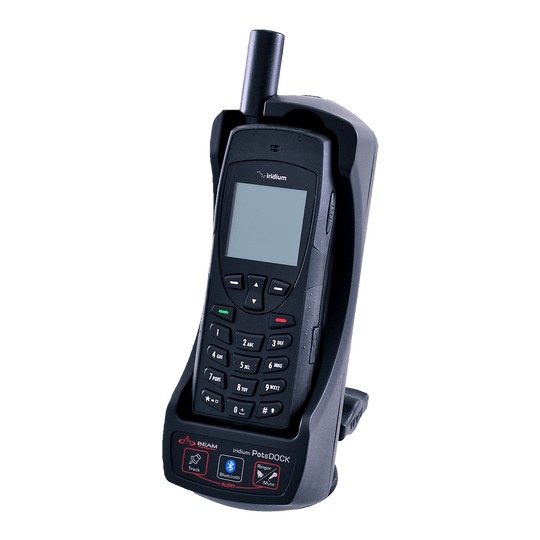

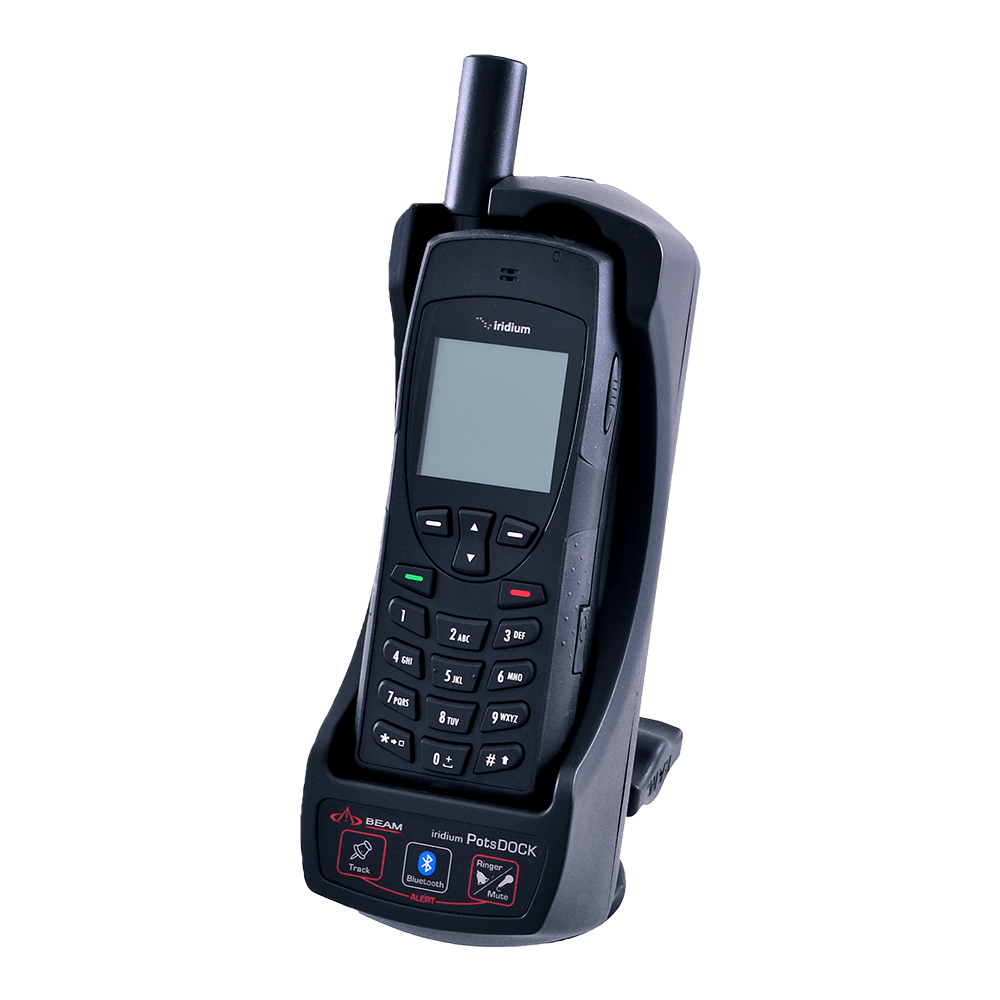

The Beam PotsDOCK 9555, an Iridium 9555 dock, is a highly featured docking station for the Iridium 9555 handset that can be used in various maritime, transport or fixed site applications considerable extending the functionality of the 9555 handset.
Intelligent POTS Interface

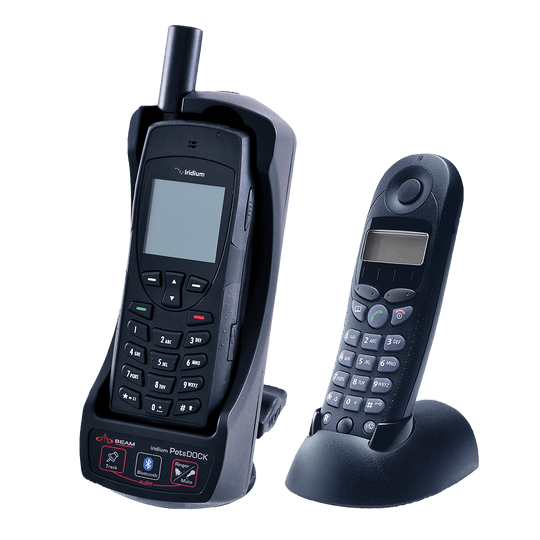

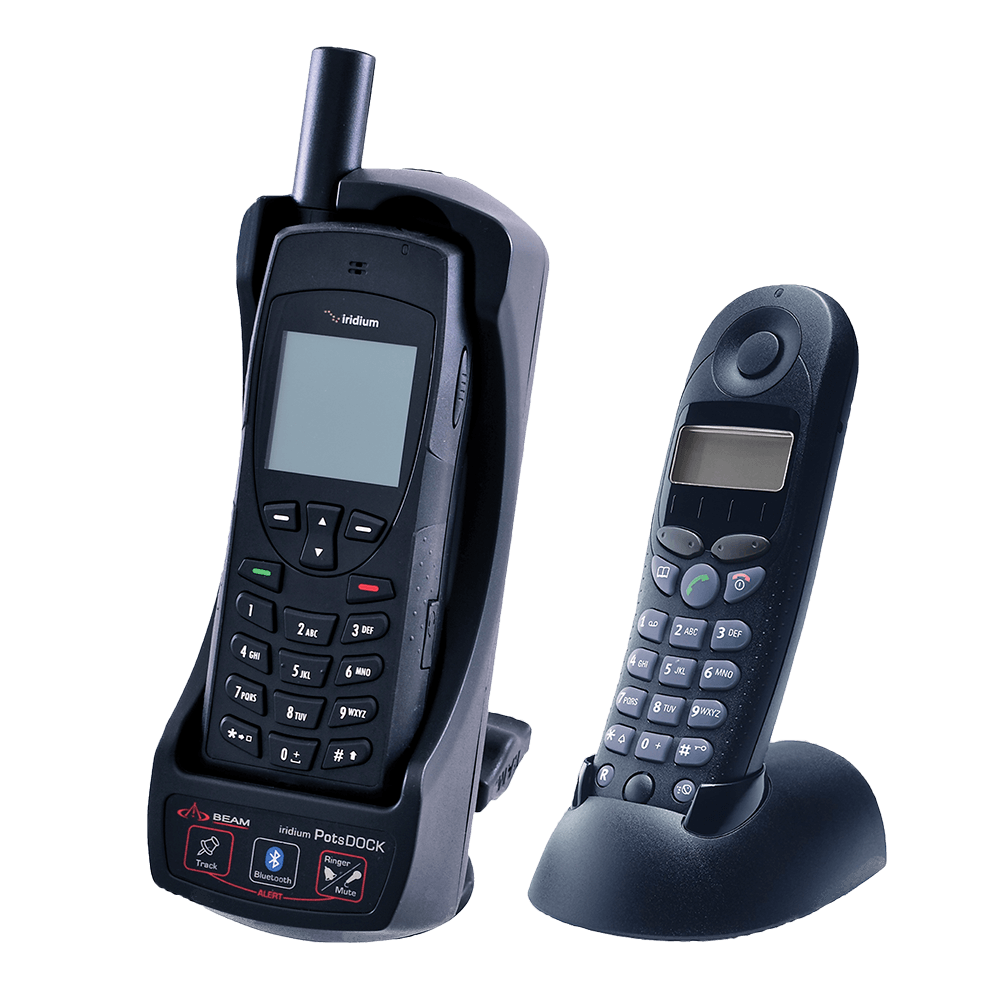

The intelligent RJ11 / POTS interface enables standard corded, cordless or DECT handsets to be used or alternatively interfaced with a PBX system presenting standard ring, busy and dial tones.
PotsDOCK 9555 also has an inbuilt Bluetooth module for voice connectivity along with an intelligent tracking and alert reporting functionality. The alert and tracking module can be configured to support periodic polling or emergency alert reporting.
Key Benefits and Features
- Slim line compact installation
- Integrated Bluetooth connectivity
- RJ11/POTS interface
- Voice, SMS, SBD and Circuit Switched Data capable
- Inbuilt tracking and SOS
- USB data interface
- RS232 D9 Serial Interface
- Accessory/Ignition sense
- 9-32V DC power input
- TNC and SMA for GPS
- Full certified, Iridium, RoHS, CE, IEC60945
- 2 year repair or replacement warranty
Technical Specifcations
Power supply
- Input 9 - 32V DC, 2A max.
- Average consumption at 12 V DC, 45 W
- Standby phone + RJ11: 90 mA, 1.1 W
- Transmit phone + RJ11: 0.5 A, 6.0 W
- Sleep Mode: 25 mA, 0.3 W

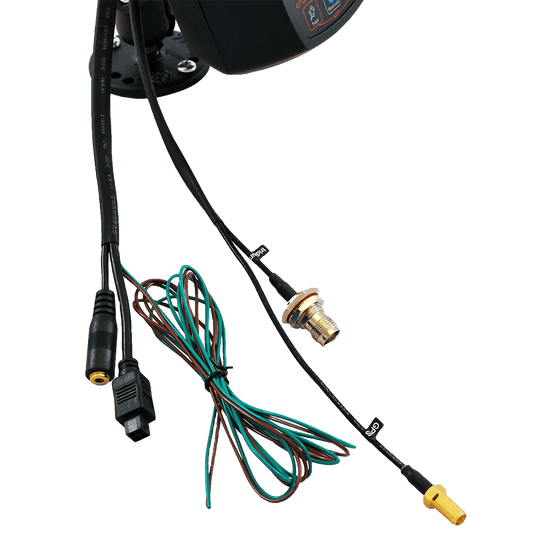

Interfaces
- RJ11/POTS phone connector, up to 600m cable length
- RS232 D9 Serial for Alarm Loop: 1 input, 1 output, several alarm buttons and up to 500 m cable

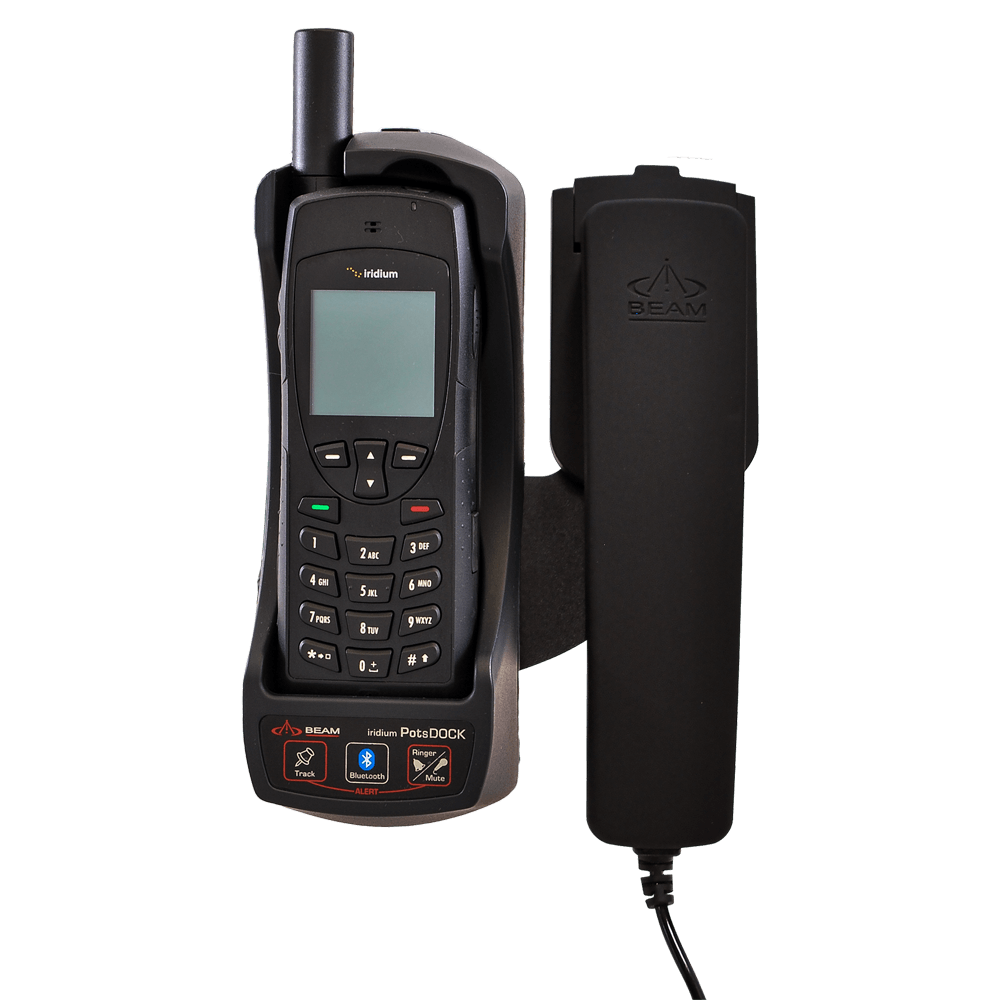

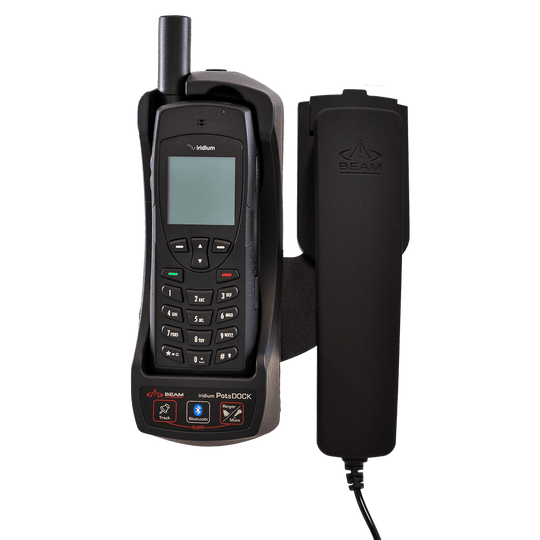

- 3.5 mm audio jack, 4-pole (for Privacy Handset RST755I)

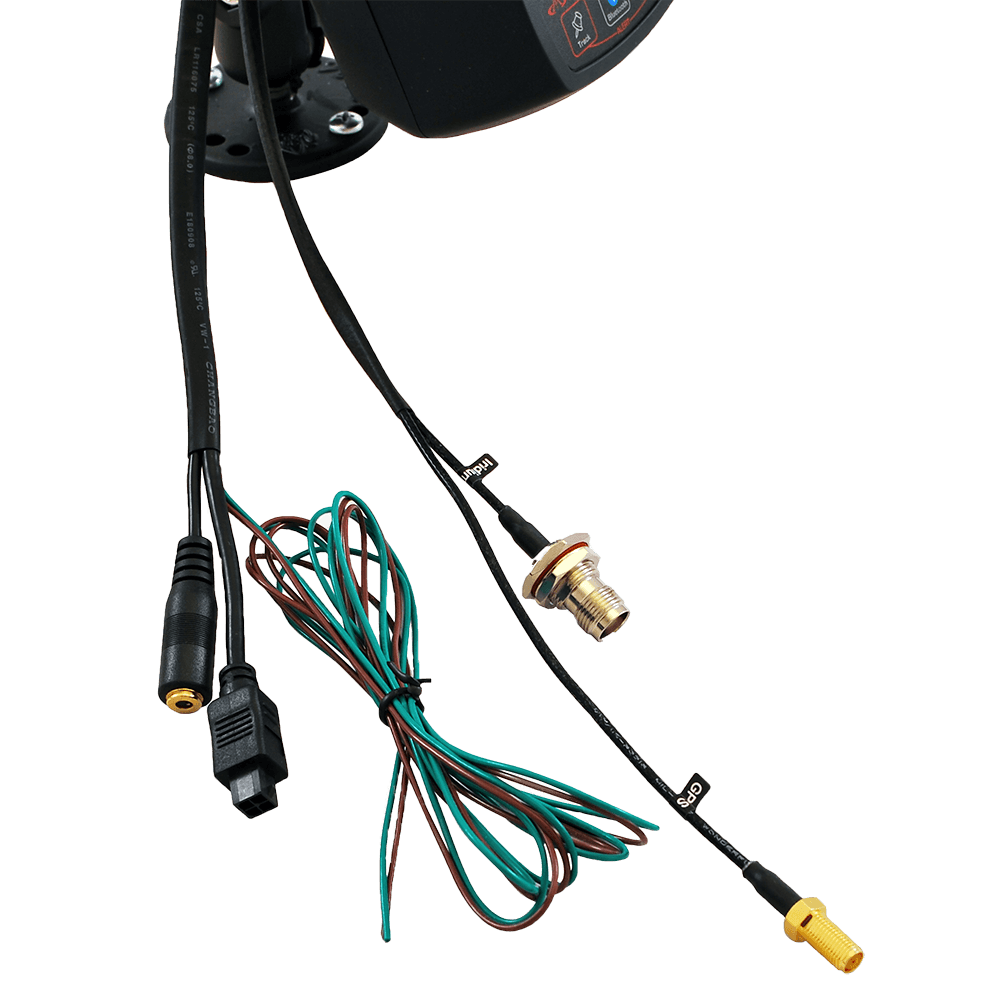

- Sat antenna TNC-female
- GPS antenna SMA-female
- BlueTooth 2.0v+EDR (Enhanced Data Rates), 802.11 coexistence
- USB Mini
Dimensions and weight
- Dimensions: 7.9" x 3.0" x 2.6" (200 mm x 75 mm x 65 mm)
- Weight: 0.7 lbs (0.32 kg)
Environment
- Operating temperature: -22°F to +158°F (-20°C to 70°C)
- Storage temperature: -40°F to 185°F (-30°C to 55°C)
- Humidity: 93% non condensing
What's in the Box

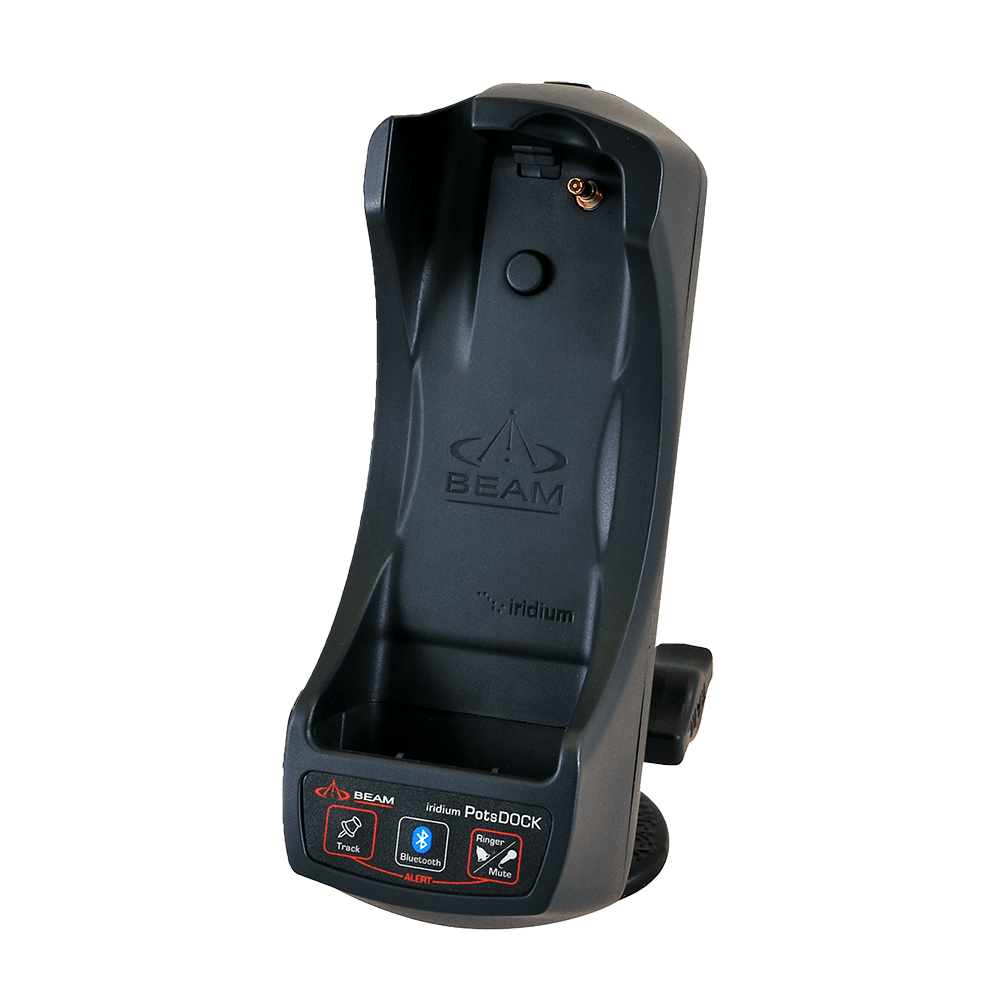

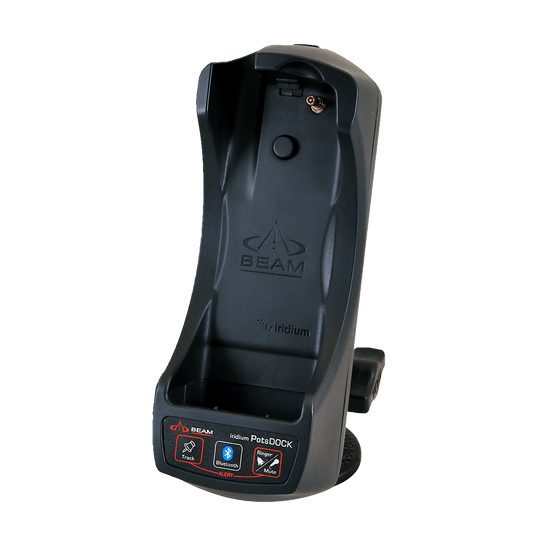

- Beam PotsDOCK Cradle

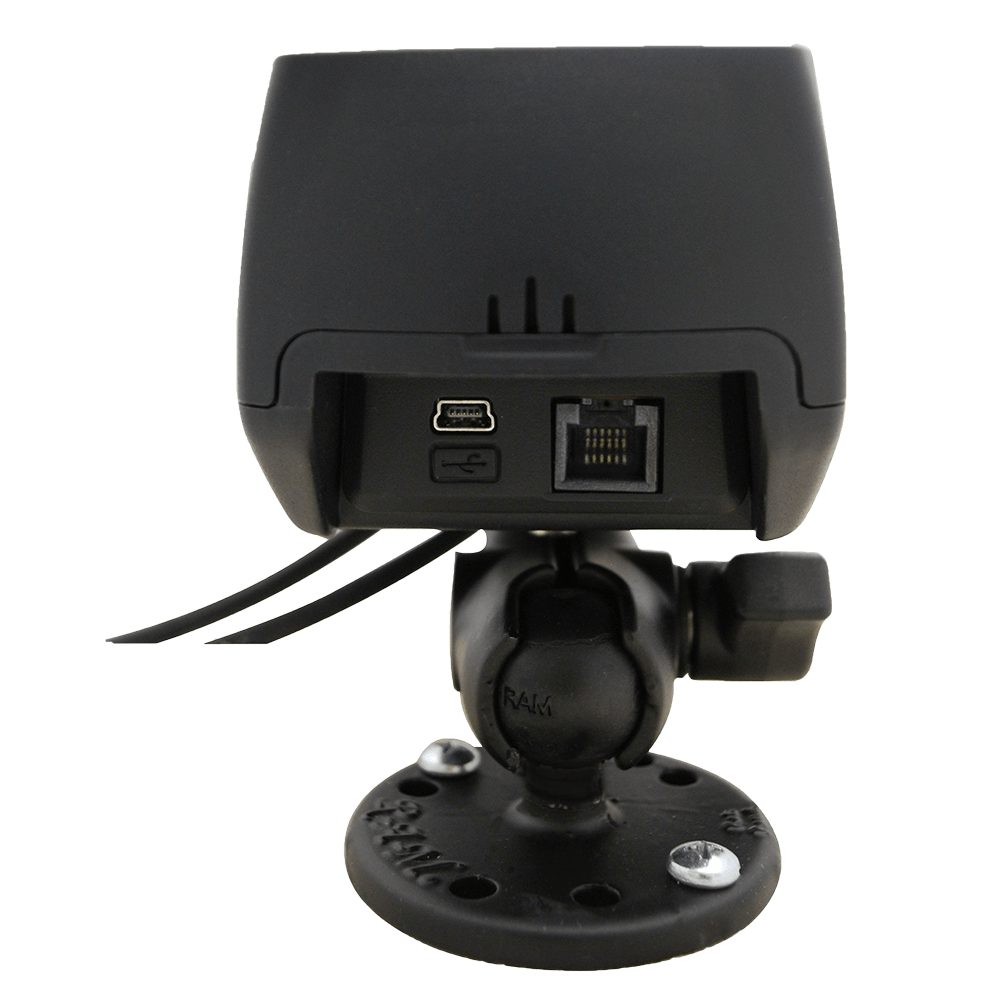

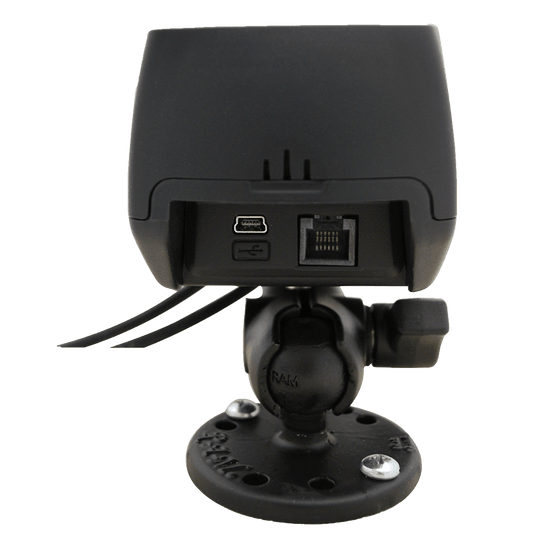

- Universal Mounting Bracket (RAM)
- 110 - 240V AC Plug Pack
- 9 - 32V DC Power Cable
- Quick Start Guide
- User Manual
Satellite phone and accessories sold separately.
